| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

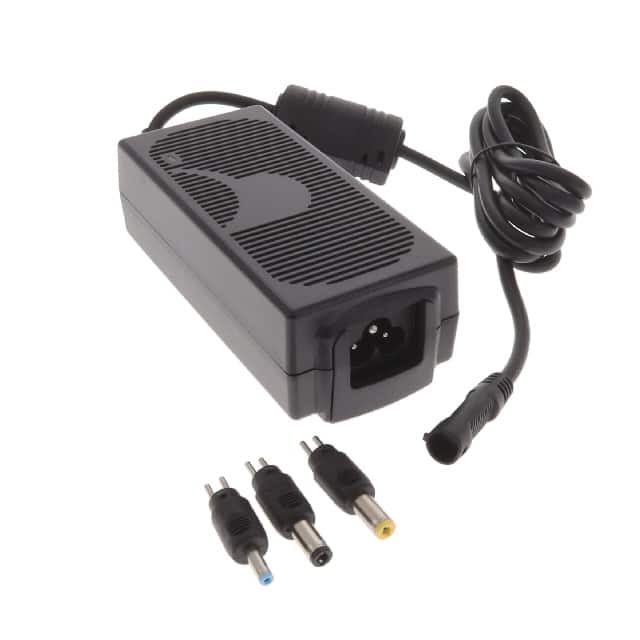

The GlobTek RR9LZ3250T00-IMR6B is a versatile AC/DC power adapter designed for both desktop and wall-mount applications. It provides a regulated output of 20V at 3.25A, delivering a total of 65W of power.
This adapter is engineered for efficiency, meeting the USA DoE Level VI and Eco-Design Directive 2009/125/EC standards, ensuring reduced energy consumption. It operates with a universal input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use.
The unit features a compact design with dimensions of 117.5mm x 53.5mm x 36.6mm. It includes an IEC 320-C6 input connector and comes with a T-plug system for output, offering flexibility with interchangeable tips (5.5x2.5mm, 5.5x2.1mm, 3.5x1.3mm). The output cord is 1.20 meters long.
Designed for ITE (Commercial) and Medical applications, the RR9LZ3250T00-IMR6B holds numerous safety and compliance approvals, including CB, CE, cETLus, ETL, and FCC. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 150mW maximum.
The RR9LZ3250T00-IMR6B provides an output voltage of 20V at a current of 3.25A.
This adapter has a power rating of 65W.
The adapter meets the Level VI efficiency standard.
The operating temperature range is -20°C to 40°C.
It supports a universal input voltage range of 100-240V AC.
The adapter is approved for ITE (Commercial) and Medical applications.
It has approvals from CB, CE, cETLus, EAC, ETL, FCC, PSE, S-Mark, UKRSepro, and VCCI.
