Mfr Part #:

RR9LZ3000USBCPPS(R6B)

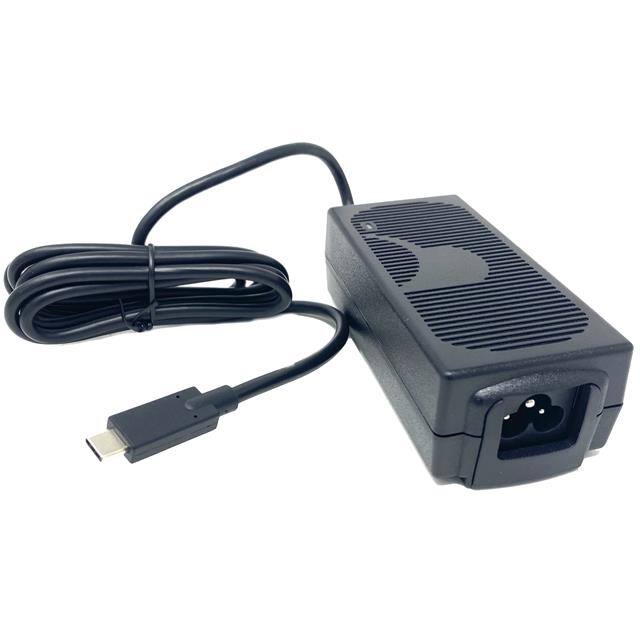

The GlobTek RR9LZ3000USBCPPS(R6B) is a 60W AC/DC desktop and wall mount adapter. It offers a wide input voltage range and multiple output voltage options.

Stock on Request

RR9LZ3000USBCPPS(R6B) Description

Short technical summary and product information.

This AC/DC adapter from GlobTek, model RR9LZ3000USBCPPS(R6B), provides up to 60W of power. It is designed for both desktop and wall mount applications, featuring a Class I form factor.

The adapter accepts a universal input voltage range of 90 to 264 VAC and supports various output voltages from 3.6V to 20V, with a maximum output current of 4.6A. It meets Level VI efficiency standards and CoC Tier 1 requirements, making it suitable for energy-conscious designs.

Connectivity is provided via a USB C output connector. The input connector is IEC 320-C6, with multi-blade options available separately. Its dimensions are 117.5mm x 53.5mm x 36.6mm, and it includes a 1.50m cord.

Designed for ITE (Commercial) and Medical applications, this adapter complies with international standards including 60601-1, 60950-1, and 62368-1. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

RR9LZ3000USBCPPS(R6B) Quick Information

Product Type: AC DC Desktop, Wall Adapter

Series: USB PD with PPS

Canonical Name: GlobTek, Inc. RR9LZ3000USBCPPS(R6B) AC/DC Desktop, Wall Adapter

Subcategory: AC DC Desktop, Wall Adapter

RR9LZ3000USBCPPS(R6B) Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RR9LZ3000USBCPPS(R6B) Features

60W AC/DC desktop/wall mount adapter.
Universal 90-264 VAC input voltage.
Selectable output voltages up to 20V.
USB C output connector.
Level VI efficiency compliance.

RR9LZ3000USBCPPS(R6B) Applications

Ideal for medical device power supply.
Suitable for ITE and commercial equipment.
Used in portable electronics charging.
Supports variable voltage applications.

RR9LZ3000USBCPPS(R6B) FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

90 ~ 264 VAC

What is the packaging type?

Bulk

What is the operating temperature range?

-10°C to 40°C

What output voltages are supported?

5V, 5.8V, 9V, 12V, 15V, 20V, and a variable range of 3.6V to 11V

What is the maximum power output?

60W

What efficiency standards does this adapter meet?

Level VI and CoC Tier 1

What type of output connector does it have?

USB C

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	GlobTek, Inc.
Applications	ITE (Commercial), Medical
Approval Agency	CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI
Cord Length	1.50m (59")
Current	4.6A, 4.6A, 4.4A, 4A, 3.6A, 3A, 4A
Duration	117.5mm x 53.5mm x 36.6mm (4.63" L x 2.11" W x 1.44" H)
Efficiency	Level VI, CoC Tier 1
Form	Desktop, Wall Mount (Class I)
Industrial Grade	Yes
Input Connector	IEC 320-C6, Multi-Blade (Sold Separately)
Input Type	Cord, Multi-Blade (Sold Separately)
Medical Grade	Yes
No Load Power Consumption	75mW (Max)
Operating Temperature	-10°C ~ 40°C
Output Connector	USB C
Power (Watts)	60 W
Region Utilized	International
Standard Number	60601-1; 60950-1; 62368-1
Voltage	5V, 5.8V, 9V, 12V, 15V, 20V, 3.6V ~ 11V
