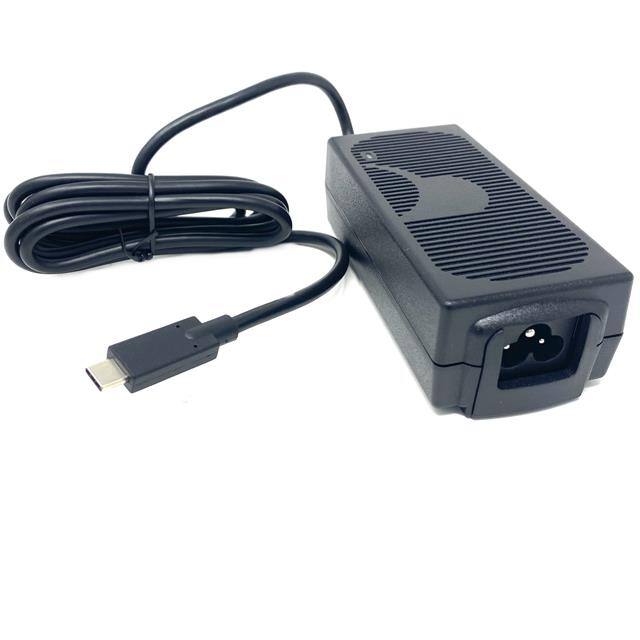

The GlobTek RR9LZ3000USBCG2(R6B) is a versatile 60W AC/DC power adapter designed for both desktop and wall-mount applications. It supports a wide input voltage range of 100-240V AC, making it suitable for international use.
The adapter provides multiple output voltage options, including 5V, 5.8V, 9V, 12V, 15V, and 20V, with corresponding maximum currents up to 4.6A. Power delivery is managed through a USB Type-C Power Delivery (PD) connector. It meets Level VI efficiency standards and is suitable for ITE (Commercial) and Medical applications.
Key features include a compact form factor with dimensions of 117.5mm x 53.5mm x 36.6mm and a cord length of 1.50 meters. The input connector is IEC 320-C6, with options for multi-blade input cords. The device operates within a temperature range of -10°C to 50°C and has a low no-load power consumption of 75mW maximum.
Compliance is ensured through numerous agency approvals, including CB, CCC, CE, cETLus, EAC, ETL, PSE, RCM, and VCCI, adhering to standards such as IEC 62368-1 and IEC 60601-1. The RoHS status is compliant, and it is rated MSL 1.
The GlobTek RR9LZ3000USBCG2(R6B) offers selectable output voltages of 5V, 5.8V, 9V, 12V, 15V, and 20V.
The adapter has a maximum power output of 60W.
The output connector is a USB Type-C Power Delivery (PD) connector.
The adapter can operate in temperatures ranging from -10°C to 50°C.
Yes, it meets the Level VI energy efficiency standard.
It is suitable for ITE (Commercial) and Medical applications.
The adapter supports an input voltage range of 100-240V AC at 50-60Hz.
