| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

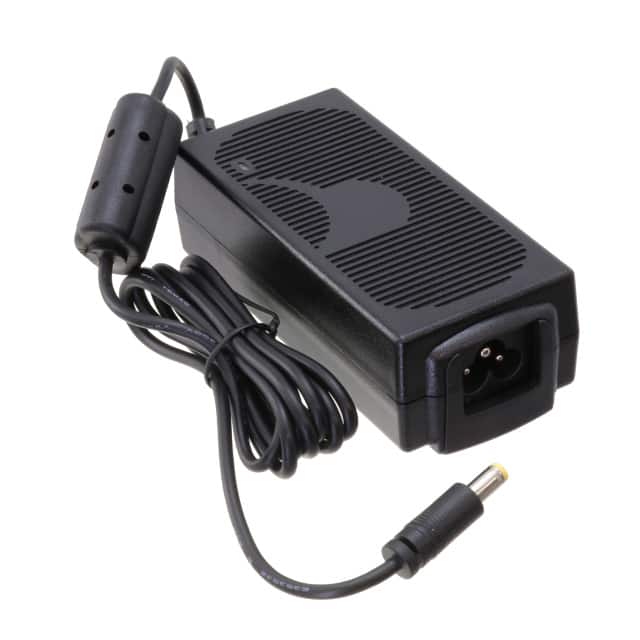

The GlobTek, Inc. RR9LI2700CCP-IMR6B is an AC/DC desktop and wall mountable power adapter designed for ITE (Commercial) and Medical applications. It provides a 24V output voltage with a current rating of 2.7A, delivering a total power of 65W.
This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 2 compliance. It operates within a temperature range of -20°C to 40°C and features a low no-load power consumption of 150mW maximum. The input connector is IEC 320-C6 with multi-blade compatibility (sold separately), and the output utilizes a standard 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug with a positive center polarization.
Designed for international use, the RR9LI2700CCP-IMR6B complies with various safety and regulatory standards including 60601-1-11, 60601-1-2, and 62368-1, and has received approvals from agencies such as CB, CE, cETLus, FCC, and PSE. The unit has dimensions of 117.5mm x 53.5mm x 36.6mm and includes a 60.2" (1.53m) cord.
The output voltage is 24V.
The maximum current output is 2.7A.
The power rating is 65W.
The operating temperature range is -20°C to 40°C.
It uses an IEC 320-C6 input connector with multi-blade compatibility, which is sold separately.
The dimensions are 117.5mm x 53.5mm x 36.6mm.
