| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

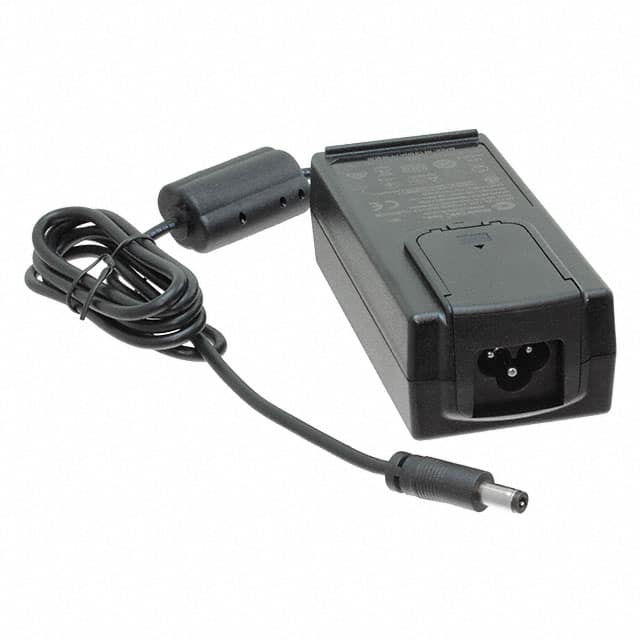

The GlobTek RR9LI2500LCPCIMR6B is a regulated switchmode AC-DC power supply designed for various applications including household appliances, ITE commercial equipment, and medical devices. It operates with an input voltage range of 100-240V AC at 50-60 Hz and delivers a stable 24V DC output at 2.5A, providing a total of 60W of power.
This power supply meets Level VI efficiency standards, ensuring energy savings and reduced heat generation. It is designed for both desktop and wall-mount use, offering flexibility in installation. The input connector is an IEC 320-C6, and it utilizes a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.
Key features include a wide operating temperature range of -20°C to 40°C and a low no-load power consumption of 150mW maximum. The unit has undergone various safety and performance approvals, including CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, making it suitable for international utilization. The dimensions are 117.5mm x 53.5mm x 36.6mm.
The adapter provides a regulated 24VDC output.
It accepts a universal input voltage range of 100 to 240VAC.
The unit operates reliably between -20°C and 40°C.
It supports both desktop placement and wall mounting configurations.
It uses a barrel plug with a 2.5mm inner diameter and 5.5mm outer diameter.
The included power cord measures 1.5 meters in length.
It meets USA DoE Level VI and EU Eco-Design efficiency standards.
