| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

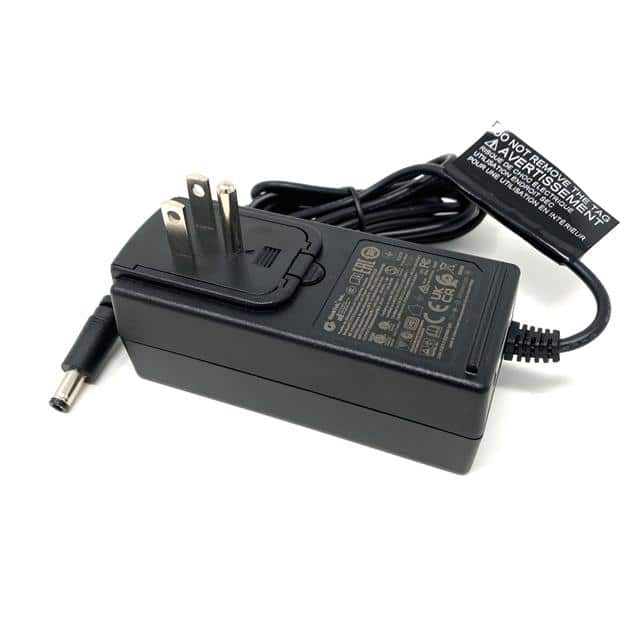

This AC/DC adapter from GlobTek, Inc., part number RR9LI1500LCPIMNAR6B, is designed for desktop or wall mounting applications. It delivers a stable 24V output with a current rating of 1.5A, providing a total power of 36W. The adapter meets Level VI efficiency standards, ensuring energy savings.
Key specifications include an input connector compatible with IEC 320-C6 and multi-blade options, and an output connector with a barrel plug (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The operating temperature range is from -20°C to 40°C. It is suitable for various applications including household appliances, ITE (Commercial), and Medical.
The unit has dimensions of 101.7mm in length, 46.5mm in width, and 38.2mm in height. It operates internationally and has achieved numerous approval agency certifications, including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI.
24V DC.
1.5A.
36W.
Level VI.
-20°C to 40°C.
IEC 320-C6 and multi-blade (single blade included).
101.7mm x 46.5mm x 38.2mm.
