| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

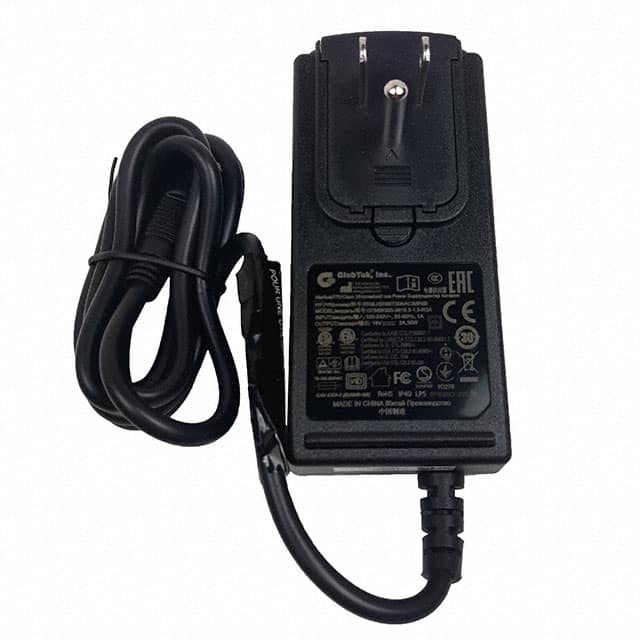

The GlobTek RR9LH2000T00NACIMR6B is an AC/DC Desktop and Wall Mountable power adapter designed for versatile applications. It delivers a stable 18V output at a maximum current of 2A, providing a total power of 36W. This adapter meets Level VI efficiency standards, ensuring energy conservation.
Designed for international use, the RR9LH2000T00NACIMR6B features a Class I form factor and accepts international input types, including IEC 320-C6 and multi-blade options. The output connector is a flexible barrel plug kit supporting multiple sizes. Its operating temperature range is -20°C to 40°C, making it suitable for various environments. The adapter also boasts a low no-load power consumption of 75mW maximum.
Key specifications include dimensions of 101.7mm x 46.5mm x 38.2mm and a cord length of 1.50m. It is compliant with numerous standards such as 60335-1, 60601-1-11, and 62368-1, and has received approvals from agencies including CE, cETLus, and FCC. Applications include household appliances, ITE commercial equipment, and medical devices.
The output voltage is 18V and the output current is 2A.
The power rating is 36W.
It meets Level VI efficiency.
The operating temperature range is -20°C to 40°C.
It includes a barrel plug kit with three tip sizes: 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
The dimensions are 101.7mm (4.00") length, 46.5mm (1.83") width, and 38.2mm (1.50") height.
It is approved for household appliances, ITE (commercial), and medical applications.
