| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

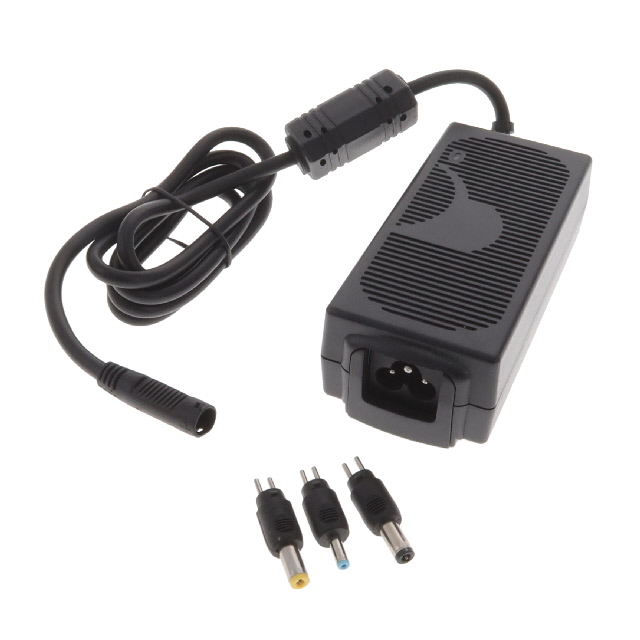

The GlobTek, Inc. RR9LG4330T00-IMR6B is an AC/DC adapter designed for desktop and wall mounting applications. It delivers a stable 15V output with a maximum current of 4.33A, providing a total power of 65W.
This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 2 compliance. It operates within a temperature range of -20°C to 40°C and features a compact form factor with dimensions of 117.5mm x 53.5mm x 36.6mm. The input connector is IEC 320-C6 with multi-blade options available separately, and it supports international voltage utilization.
Designed for ITE (Commercial) and Medical applications, the RR9LG4330T00-IMR6B has received numerous agency approvals, including CB, CE, cETLus, EAC, ETL, FCC, PSE, S-Mark, UKRSepro, and VCCI. It features a negative center polarization for its output connector, which is compatible with a barrel plug kit including common sizes like 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm. The cord length is 47.2 inches (1.20m).
The RR9LG4330T00-IMR6B adapter has an output voltage of 15V and an output current of 4.33A.
The power rating of the RR9LG4330T00-IMR6B adapter is 65W.
The RR9LG4330T00-IMR6B adapter meets Level VI and CoC Tier 2 efficiency standards.
The operating temperature range for the RR9LG4330T00-IMR6B adapter is -20°C to 40°C.
The dimensions of the RR9LG4330T00-IMR6B adapter are 117.5mm in length, 53.5mm in width, and 36.6mm in height.
The RR9LG4330T00-IMR6B adapter has approvals from CB, CE, cETLus, EAC, ETL, FCC, PSE, S-Mark, UKRSepro, and VCCI.
The RR9LG4330T00-IMR6B adapter is RoHS3 Compliant.
