| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

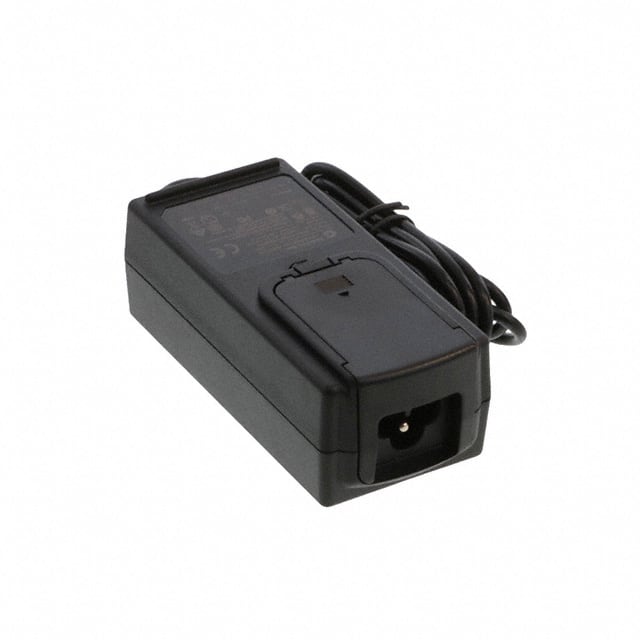

The GlobTek, Inc. RR9LG2400CCPCIMR6B is an AC/DC desktop and wall mount adapter (Class I) that converts a universal AC input of 100-240V~ at 50-60 Hz to a regulated 15V DC output. It delivers up to 2.4A of continuous current, providing a total power of 36W. The adapter meets Level VI efficiency standards and has a maximum no-load power consumption of 75mW.
This adapter features an IEC 320-C6 input connector and accepts multi-blade input plugs sold separately. The output is delivered through a standard barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter, with a positive center polarization. The output cord length is 60.2 inches (1.53m).
Housed in a compact enclosure measuring 101.7mm x 46.5mm x 38.2mm, the RR9LG2400CCPCIMR6B is designed for a wide operating temperature range of -20°C to 40°C. It carries multiple safety and compliance approvals including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, and complies with standards such as 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
The output voltage is 15V DC and the maximum output current is 2.4A.
The input voltage range is 100-240V~ at 50-60 Hz.
The operating temperature range is -20°C to 40°C.
The output connector is a barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter, with a positive center polarity.
This adapter meets Level VI efficiency standards.
The adapter measures 101.7mm in length, 46.5mm in width, and 38.2mm in height.
