| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

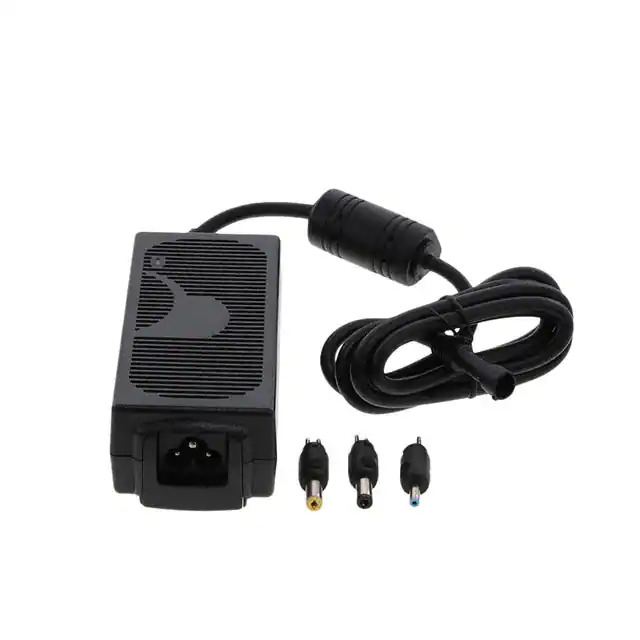

The GlobTek, Inc. RR9LE5000T00CIMR6B is a versatile AC/DC power adapter designed for both desktop and wall-mount applications. It delivers a stable 12V output at 5A, providing a total of 60W of power.
This power supply meets the stringent Level VI efficiency requirements, ensuring reduced energy consumption. It operates with an input voltage range of 100-240 VAC and a frequency of 50-60 Hz, making it suitable for international use. The adapter features an IEC 320-C6 input connector and comes with a T-plug system for output, including common barrel plug sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm).
Designed for reliability, the RR9LE5000T00CIMR6B operates within an ambient temperature range of -20°C to 40°C. Its compact dimensions (117.5mm x 53.5mm x 36.6mm) and dual form factor (desktop/wall mount) offer flexibility in deployment. The adapter also boasts a low no-load power consumption of 150mW (Max).
Key approvals include CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKRSepro, and VCCI, underscoring its suitability for various commercial, medical, and household applications.
100-240 VAC, 50-60 Hz.
-20°C to 40°C.
Desktop and Wall Mount (Class I).
Barrel plug kit with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
60335-1, 60601-1-11, 60601-1-2, 60950-1, 62368-1.
Level VI.
150mW max.
