| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

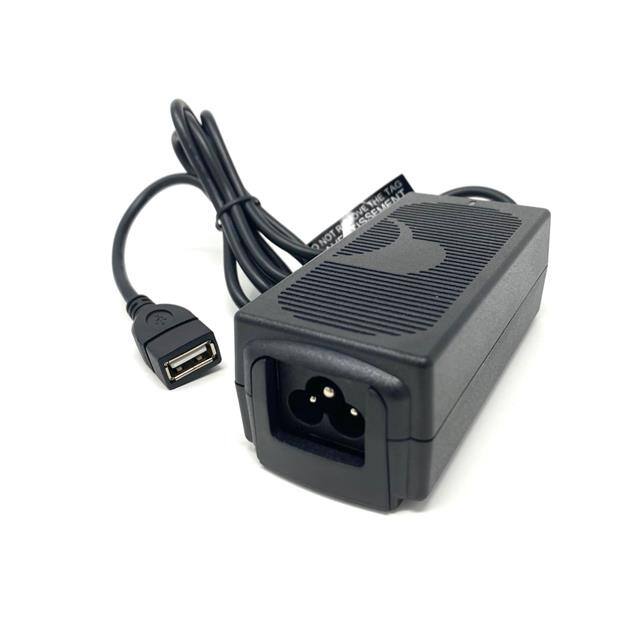

The GlobTek RR9LA4500USBA-IMR6B is an AC/DC external desktop adapter designed for various applications including household appliances, ITE (Commercial), and Medical.
This adapter provides a stable 5V output with a maximum current of 4.5A, delivering a total power of 23W. It features high efficiency, meeting Level VI and CoC Tier 2 standards, and has a low no-load power consumption of 75mW. The input voltage range is 90-264 VAC, with an IEC 320-C6 input connector. The output is delivered via a USB A receptacle.
Designed for versatility, the adapter operates within a temperature range of -10°C to 40°C. Its dimensions are 102.2mm x 47.5mm x 36.7mm, making it a compact desktop unit (Class I).
Compliance is assured with approvals from agencies such as CB, CCC, CE, cETLus, FCC, PSE, Ukraine, VCCI, and WEEE. It adheres to international standards including 60335-1, 60601-1, 60950-1, and 62368-1. The unit is RoHS3 compliant and has an MSL rating of 1 Unlimited.
The input voltage range is 90 to 264 VAC.
The output is 5V DC at 4.5A maximum.
The power rating is 23W.
It meets Level VI and CoC Tier 2 efficiency standards.
The operating temperature range is -10°C to 40°C.
It complies with standards 60335-1, 60601-1, 60950-1, and 62368-1.
The no-load power consumption is 75mW.
