Mfr Part #:

RR9KZ3000USBCRAR6B

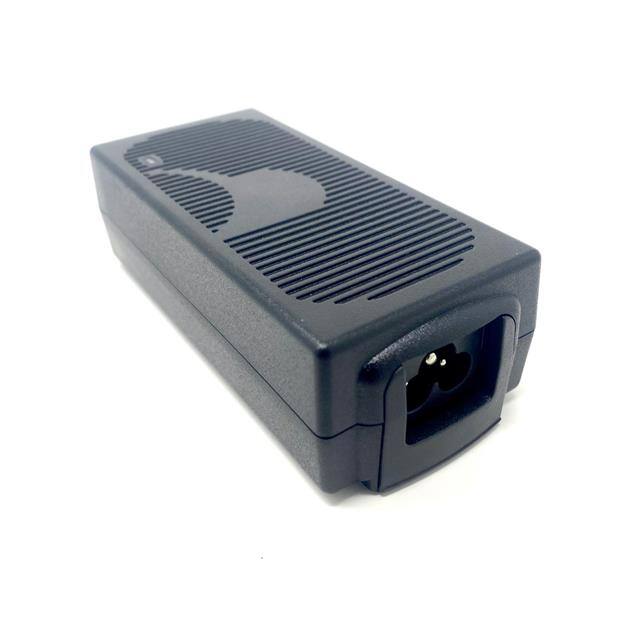

The GlobTek RR9KZ3000USBCRAR6B is a 60W AC/DC Desktop, Wall Mount Adapter. It features a USB C receptacle output and supports a wide input voltage range.

Stock on Request

RR9KZ3000USBCRAR6B Description

Short technical summary and product information.

The GlobTek RR9KZ3000USBCRAR6B is a versatile 60W AC/DC external adapter designed for desktop or wall mounting. It offers multiple output voltage options ranging from 5V to 20V, with maximum output currents varying from 3A to 4.6A.

This adapter is suitable for ITE (Commercial) and Medical applications, meeting Efficiency Level VI and CoC Tier 2 standards. It features a convenient USB C receptacle for output and an IEC 320-C8 input connector. The unit operates within a temperature range of -10°C to 40°C and has dimensions of 117.5mm x 53.5mm x 36.6mm.

Compliance includes CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKCA, Ukraine, VCCI, and WEEE approvals. It is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The adapter is designed for international use.

RR9KZ3000USBCRAR6B Quick Information

Product Type: AC DC Desktop, Wall Adapter

Canonical Name: GlobTek, Inc. RR9KZ3000USBCRAR6B AC/DC Desktop, Wall Adapter

RR9KZ3000USBCRAR6B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RR9KZ3000USBCRAR6B Features

60W AC/DC desktop/wall mount adapter.
Output voltages from 5V to 20V.
USB C receptacle output connector.
ITE (Commercial) and Medical applications.
RoHS3 Compliant and MSL 1 Unlimited.

RR9KZ3000USBCRAR6B Applications

For commercial ITE equipment power needs.
Suitable for medical device power supply.
Charging USB-C powered portable devices.
Powering point-of-sale terminals and kiosks.

RR9KZ3000USBCRAR6B FAQs

7 frequently asked questions generated from this part’s specifications.

What output voltages does the RR9KZ3000USBCRAR6B support?

It supports 5V, 5.8V, 9V, 12V, 15V, 15.1V, and 20V.

What is the maximum output current at each voltage?

Maximum currents are 4.6A at 5V and 5.8V, 4.4A at 9V, 4A at 12V, 3.6A at 15V and 15.1V, and 3A at 20V.

What input voltage range does the adapter accept?

It accepts 90 to 264 VAC.

What safety standards does the RR9KZ3000USBCRAR6B comply with?

It complies with 60601-1 (medical), 60950-1, and 62368-1 (ITE).

What is the operating temperature range?

The operating temperature range is -10°C to 40°C.

What type of output connector does this adapter use?

It uses a USB-C receptacle.

What is the efficiency rating of this adapter?

It is rated Level VI and CoC Tier 2.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	GlobTek, Inc.
Applications	ITE (Commercial), Medical
Approval Agency	CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, S-Mark, UKCA, Ukraine, VCCI, WEEE
Current	4.6A, 4.6A, 4.4A, 4A, 3.6A, 3.6A, 3A
Efficiency	Level VI, CoC Tier 2
Form	Desktop, Wall Mount (Class II)
Input Connector	IEC 320-C8
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption	75mW (Max)
Operating Temperature	-10°C ~ 40°C
Output Connector	USB C Receptacle
Power (Watts)	60 W
Region Utilized	International
Standard Number	60601-1; 60950-1; 62368-1
Voltage	5V, 5.8V, 9V, 12V, 15V, 15.1V, 20V
