| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

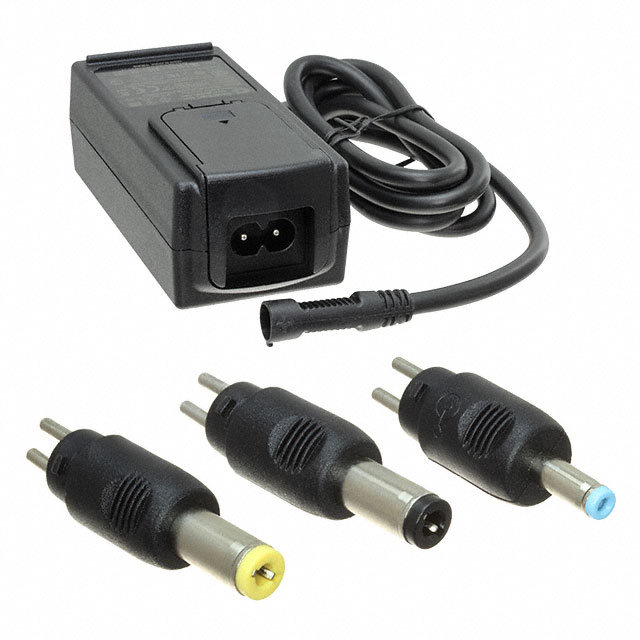

The GlobTek RR9KX1250T00CIMR6B is an AC/DC external desktop and wall mount adapter with a power output of 60W and a voltage of 48V. It operates with an input voltage range of 90 to 264 VAC and delivers a maximum output current of 1.25A.
This adapter meets Efficiency Level VI standards and has a low no-load power consumption of 150mW maximum. It is designed for use in household appliances, ITE (Commercial), and medical applications. The adapter features an IEC 320-C8 input connector and comes with a multi-blade input type, sold separately. The output connector is a barrel plug kit compatible with multiple sizes.
With dimensions of 117.5mm x 53.5mm x 36.6mm, it is housed in a desktop, wall mount (Class II) form factor. The operating temperature range is from -20°C to 40°C. It complies with numerous international standards including 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. The product is RoHS3 Compliant, REACH Unaffected, and has an MSL of 1 Unlimited.
The RR9KX1250T00CIMR6B has an output voltage of 48V and a maximum output current of 1.25A.
The power rating for this adapter is 60W.
The adapter accepts an input voltage range of 90 to 264 VAC.
This adapter meets Energy Efficiency Level VI.
Typical applications include Household Appliances, ITE (Commercial), and Medical devices.
The operating temperature range is -20°C to 40°C.
It adheres to standards including 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
