| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

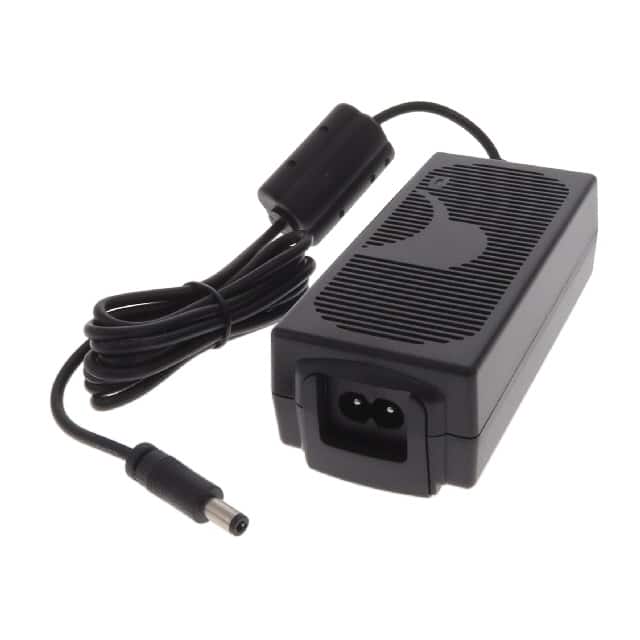

The GlobTek RR9KI2700LCP-IMR6B is a regulated switchmode AC-DC power supply designed for ITE and Medical applications. It provides a stable 24V output at 2.7A, delivering a total of 65W of power.
This power supply meets USA DoE Level VI and EU Eco-Design Directive efficiency standards, ensuring minimal energy waste. It features a flexible input rating of 100-240V~ at 50-60 Hz and utilizes an IEC 60320/C8 input connector, with options for wall blades.
The unit is housed in a GlobTek Black case and supports both desktop and wall-mount configurations. Its output connector is a standard 5.5mm x 2.5mm barrel plug with a 11mm length and positive center polarization. The dimensions are 117.5mm x 53.5mm x 36.6mm, and it operates within a temperature range of -20°C to 40°C.
The RR9KI2700LCP-IMR6B provides an output voltage of 24V at a current of 2.7A.
This power supply has a power rating of 65W.
The RR9KI2700LCP-IMR6B meets Level VI efficiency standards.
The operating temperature range for the RR9KI2700LCP-IMR6B is -20°C to 40°C.
The input connector is an IEC 320-C8, with options for multi-blades.
The dimensions are 117.5mm x 53.5mm x 36.6mm.
