| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

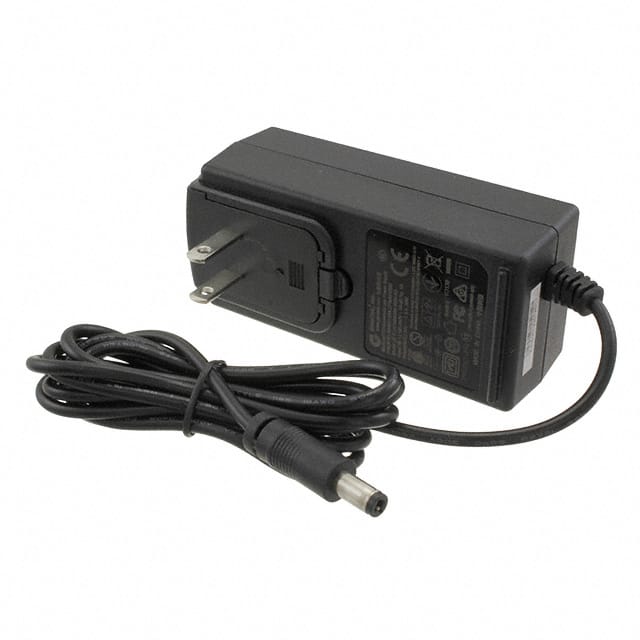

This AC/DC adapter from GlobTek, Inc., part number RR9KI1500LCPIMNAR6B, delivers 36 watts of power with a 24V output at 1.5A. Designed for versatility, it can be used as both a desktop and wall mount unit, conforming to Class II safety standards.
The adapter features Level VI efficiency, ensuring optimal energy usage. Its input voltage range is 90 to 264 VAC, making it suitable for international applications. The input connector is an IEC 320-C8, and the output is delivered via a 2.5mm I.D. x 5.5mm O.D. barrel plug with a 11.0mm length.
With an operating temperature range of -20°C to 40°C, this adapter is built for various environments. It also includes a positive center polarization and a cord length of 60.2 inches (1.53m). The dimensions are 101.7mm x 46.5mm x 38.2mm, and it has a low no-load power consumption of 75mW maximum.
Compliance is met with standards including 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1. Approval agencies include CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI. Applications include Household Appliances, ITE (Commercial), and Medical devices.
The adapter has a power output of 36 Watts.
The adapter provides a 24V output at 1.5A.
The input voltage range is 90 to 264 VAC.
This adapter meets Level VI efficiency standards.
The operating temperature range is -20°C to 40°C.
It uses a Barrel Plug with a 2.5mm I.D. x 5.5mm O.D. x 11.0mm size.
The dimensions are 101.7mm in length, 46.5mm in width, and 38.2mm in height.
