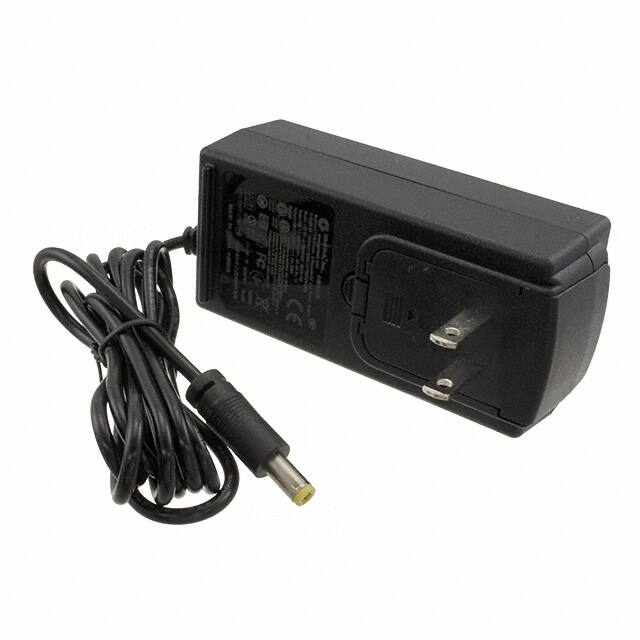

RR9KI1500CCPIMNAR6B The GlobTek, Inc. RR9KI1500CCPIMNAR6B is a 36W AC/DC desktop/wall mount adapter with a 24V output and 1.5A current. It meets Level VI efficiency standards.
Mfr Part #:

RR9KI1500CCPIMNAR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. RR9KI1500CCPIMNAR6B is a 36W AC/DC desktop/wall mount adapter with a 24V output and 1.5A current. It meets Level VI efficiency standards.
Stock on Request

RR9KI1500CCPIMNAR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

RR9KI1500CCPIMNAR6B Description

Short technical summary and product information.

The GlobTek, Inc. RR9KI1500CCPIMNAR6B is an AC/DC desktop and wall mount adapter designed for various applications. It provides a stable 24V output at 1.5A, delivering a total of 36W of power.



This adapter features Level VI efficiency, ensuring optimal energy usage. It is equipped with an IEC 320-C8 input connector and a barrel plug output connector with positive center polarization (2.1mm I.D. x 5.5mm O.D. x 11.0mm). The dimensions are 101.7mm x 46.5mm x 38.2mm.



Designed for international use, the RR9KI1500CCPIMNAR6B operates within a temperature range of -20°C to 40°C. It has a low no-load power consumption of 75mW (Max). The adapter complies with numerous standards including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI.



It is suitable for applications in household appliances, ITE (Commercial), and medical fields. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

RR9KI1500CCPIMNAR6B Quick Information

Product Type: AC/DC Desktop, Wall Adapter
Canonical Name: GlobTek, Inc. RR9KI1500CCPIMNAR6B AC/DC Desktop/Wall Mount Adapter
Subcategory: Desktop/Wall Mount

RR9KI1500CCPIMNAR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RR9KI1500CCPIMNAR6B Features

  • 36W AC/DC desktop/wall mount adapter.
  • Provides 24V output at 1.5A.
  • Meets Level VI energy efficiency standards.
  • Features IEC 320-C8 input and barrel plug output.
  • Suitable for commercial, medical, and household use.

RR9KI1500CCPIMNAR6B Applications

  • Powers medical monitoring equipment.
  • Suitable for industrial automation systems.
  • Ideal for LED lighting applications.
  • Used in telecommunications devices.
  • Powers portable electronic instruments.

RR9KI1500CCPIMNAR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the RR9KI1500CCPIMNAR6B adapter?

The adapter provides a 24V output at 1.5A.

What is the power rating of this AC/DC adapter?

The adapter has a power rating of 36W.

What efficiency level does the GlobTek RR9KI1500CCPIMNAR6B adapter meet?

This adapter meets Level VI efficiency standards.

What are the operating temperature limits for this adapter?

The adapter can operate between -20°C and 40°C.

What type of input and output connectors does this adapter use?

It features an IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm).

Is the RR9KI1500CCPIMNAR6B adapter RoHS compliant?

Yes, the RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
