| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

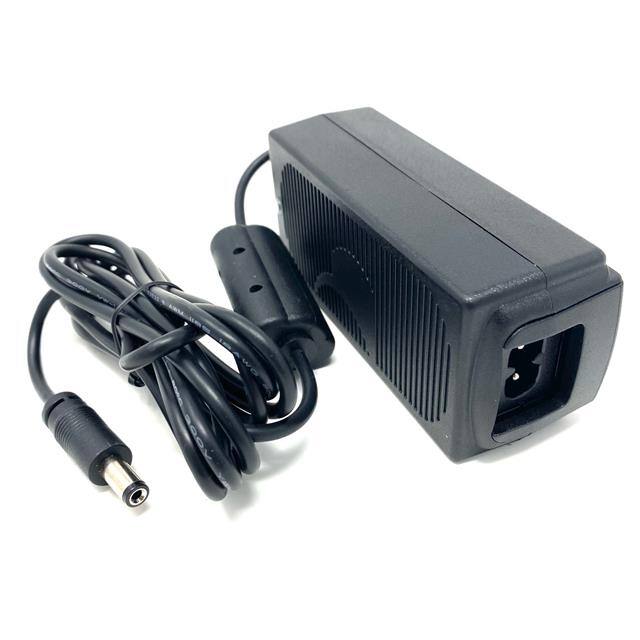

This GlobTek RR9KI1250CCPCIMRVB is a regulated switchmode AC-DC power supply designed for versatile use in medical, ITE, and household applications. It provides a stable 24V DC output at 1.25A, delivering a total of 30W of power.
The unit accepts a wide input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use. It features Level V efficiency, contributing to energy savings. The power supply is designed in a desktop/wall mount form factor and includes an IEC 60320/C8 input connector, with multi-blade options available separately.
Key specifications include a compact size of 101.6mm x 47.5mm x 36.7mm, a cord length of 1.83m, and a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm). The operating temperature range is 0°C to 40°C. It holds numerous approvals, including CB, CE, cUL, FCC, and PSE, indicating compliance with various international safety and performance standards.
The GlobTek RR9KI1250CCPCIMRVB provides an output voltage of 24VDC at 1.25A.
The power rating for the RR9KI1250CCPCIMRVB is 30W.
The input voltage range for the RR9KI1250CCPCIMRVB is 100-240V AC.
The efficiency level of the RR9KI1250CCPCIMRVB is Level V.
The dimensions are 101.6mm in length, 47.5mm in width, and 36.7mm in height.
It uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
The operating temperature range is 0°C to 40°C.
