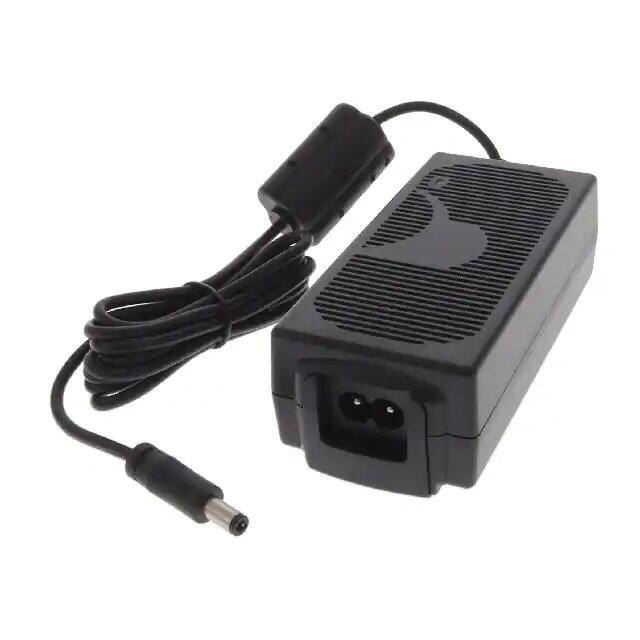

RR9KG4000LCPCIMR6B The GlobTek, Inc. RR9KG4000LCPCIMR6B is a 60W AC/DC desktop and wall mount adapter. It provides a 15V output at 4A and meets Level VI efficiency standards.
Mfr Part #:

RR9KG4000LCPCIMR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. RR9KG4000LCPCIMR6B is a 60W AC/DC desktop and wall mount adapter. It provides a 15V output at 4A and meets Level VI efficiency standards.
Stock on Request

RR9KG4000LCPCIMR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Duration
Efficiency
Form
Height
Input Connector
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Output Current
Output Voltage
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

RR9KG4000LCPCIMR6B Description

Short technical summary and product information.

This GlobTek, Inc. RR9KG4000LCPCIMR6B is an AC/DC external adapter designed for desktop and wall mount applications. It delivers a 15V output with a maximum current of 4A, providing a total power of 60W. The adapter operates within a wide input voltage range of 90 to 264 VAC and features a positive center polarization.



Designed for reliability, it operates within a temperature range of -20°C to 40°C and meets Efficiency Level VI and CoC Tier 2 standards. The output connector is a standard 2.5mm I.D. x 5.5mm O.D. x 11.0mm barrel plug. Input is via an IEC 320-C8 connector or a multi-blade input, sold separately.



Applications for this adapter include ITE (Commercial) and Medical equipment. It complies with numerous international standards including BSMI, CB, CCC, CETLus, EAC, ETL, LPS, NrCAN, PSE, S-Mark, Ukraine, UKCA, UL, VCCI, and WEEE. The dimensions are 117.5mm x 53.5mm x 36.6mm.

RR9KG4000LCPCIMR6B Quick Information

Product Type: AC DC Desktop, Wall Adapter
Series: GTM96600-6015-R2
Canonical Name: GlobTek, Inc. RR9KG4000LCPCIMR6B AC/DC Desktop, Wall Mount Adapter
Subcategory: Power Supplies

RR9KG4000LCPCIMR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RR9KG4000LCPCIMR6B Features

  • 60W AC/DC desktop and wall mount adapter.
  • Provides 15V output at 4A current.
  • Operates from 90-264 VAC input.
  • Meets Level VI efficiency standards.
  • Suitable for ITE and Medical applications.

RR9KG4000LCPCIMR6B Applications

  • Ideal for commercial electronic devices.
  • Suitable for medical equipment power.
  • Used in ITE applications requiring stable power.
  • Desktop and wall mount configurations.

RR9KG4000LCPCIMR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the RR9KG4000LCPCIMR6B?

The RR9KG4000LCPCIMR6B provides a 15V output voltage and a maximum output current of 4A.

What is the power rating of the GlobTek, Inc. RR9KG4000LCPCIMR6B adapter?

The power rating for the RR9KG4000LCPCIMR6B is 60W.

What is the input voltage range for this AC/DC adapter?

The adapter accepts an input voltage range of 90 to 264 VAC.

What are the operating temperature limits for the RR9KG4000LCPCIMR6B?

The operating temperature range is from -20°C to 40°C.

What type of output connector does the RR9KG4000LCPCIMR6B use?

It uses a Barrel Plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 11.0mm.

What are the dimensions of the RR9KG4000LCPCIMR6B adapter?

The dimensions are 117.5mm x 53.5mm x 36.6mm.

What efficiency level does the RR9KG4000LCPCIMR6B meet?

It meets Efficiency Level VI and CoC Tier 2.
