RR9KG2400LCPCIMR6B The GlobTek, Inc. RR9KG2400LCPCIMR6B is an AC/DC desktop/wall mount adapter providing 15V at 2.4A for a total of 36W. It meets Level VI efficiency standards.
Mfr Part #:

RR9KG2400LCPCIMR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. RR9KG2400LCPCIMR6B is an AC/DC desktop/wall mount adapter providing 15V at 2.4A for a total of 36W. It meets Level VI efficiency standards.
Stock on Request

RR9KG2400LCPCIMR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Industrial Grade
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

RR9KG2400LCPCIMR6B Description

Short technical summary and product information.

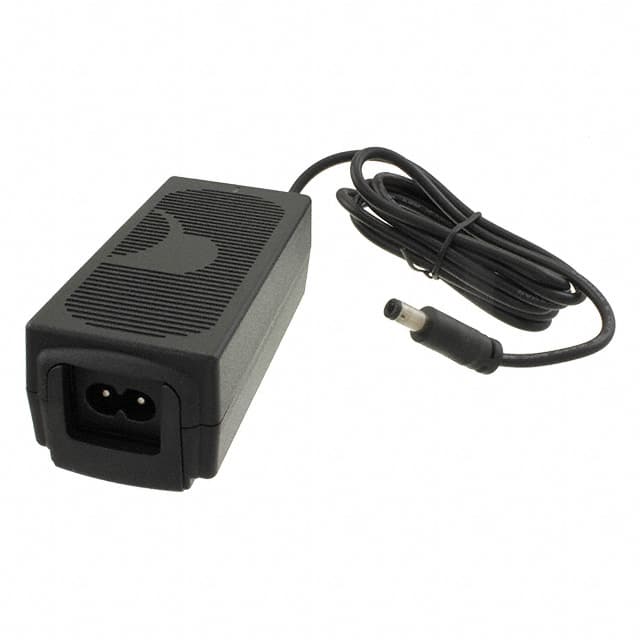

This AC/DC desktop and wall mount adapter from GlobTek, Inc., part number RR9KG2400LCPCIMR6B, delivers a 15V output at 2.4A, totaling 36W of power. It is designed for efficiency, meeting the Level VI standard.



The adapter features a compact form factor with dimensions of 101.7mm x 46.5mm x 38.2mm. It includes an IEC 320-C8 input connector and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization.



Suitable for various applications including household appliances, ITE (Commercial), and Medical, this adapter is approved by multiple agencies such as CE, cETLus, FCC, and UL. It operates within a temperature range of -20°C to 40°C and has a low no-load power consumption of 75mW maximum.



The unit is RoHS3 compliant and has an MSL rating of 1. The input type is a cord, with multi-blades sold separately. The cord length is 60.2 inches (1.53m).

RR9KG2400LCPCIMR6B Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: GlobTek, Inc. RR9KG2400LCPCIMR6B AC/DC Desktop/Wall Mount Adapter
Subcategory: Desktop/Wall Mount

RR9KG2400LCPCIMR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RR9KG2400LCPCIMR6B Features

  • 36W AC/DC desktop/wall mount adapter.
  • 15V output at 2.4A current.
  • Level VI efficiency rating.
  • IEC 320-C8 input connector.
  • Positive center barrel plug output.

RR9KG2400LCPCIMR6B Applications

  • Suitable for household appliance power supplies.
  • Supports commercial ITE equipment applications.
  • Designed for medical device power needs.
  • Works with international input configurations.

RR9KG2400LCPCIMR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What are the output ratings?

15V at 2.4A, 36W.

What efficiency level does it meet?

Level VI.

What is the operating temperature range?

-20°C to 40°C.

What is the form factor?

Desktop, wall mount (Class II).

What input connector does it use?

IEC 320-C8; multi-blade input is sold separately.

What output connector is provided?

Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm, positive center.

What applications is it intended for?

Household appliances, commercial ITE, and medical applications.
