| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

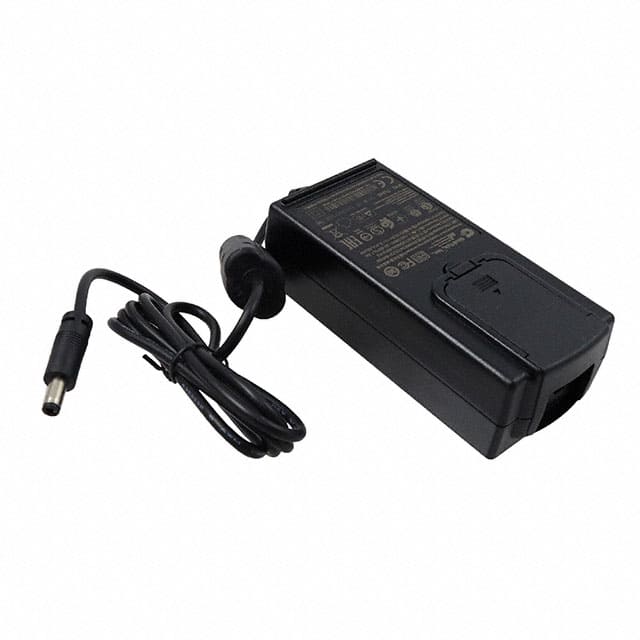

This GlobTek AC/DC power adapter, model RR9KE5410LCP-IMR6B, delivers 65W of power with a 12V output at 5.41A. It is designed for versatility, functioning as both a desktop and wall-mountable unit (Class II).
The adapter accepts a universal input voltage range of 100-240 VAC at 50-60 Hz, making it suitable for international use. It meets USA DOE Level VI and Eco-design Directive efficiency standards, ensuring energy savings.
Key features include a compact size of 117.5mm x 53.5mm x 36.6mm, a 1.20m cord length, and a positive center polarity output connector (Barrel Plug, 5.5mm O.D. x 2.5mm I.D.). The input connector is IEC 320-C8, with options for multi-blades sold separately.
Designed for ITE (Commercial) and Medical applications, this power supply operates within a temperature range of -20°C to 40°C. It also boasts a low no-load power consumption of 150mW maximum.
The RR9KE5410LCP-IMR6B provides an output voltage of 12V at a current of 5.41A.
This adapter has a power rating of 65W.
The adapter supports a universal input voltage range of 100-240 VAC.
The power supply meets Level VI efficiency standards.
The operating temperature range is -20°C to 40°C.
It uses a Barrel Plug connector with a 5.5mm outer diameter, 2.5mm inner diameter, and 11.0mm length, with positive center polarity.
