| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

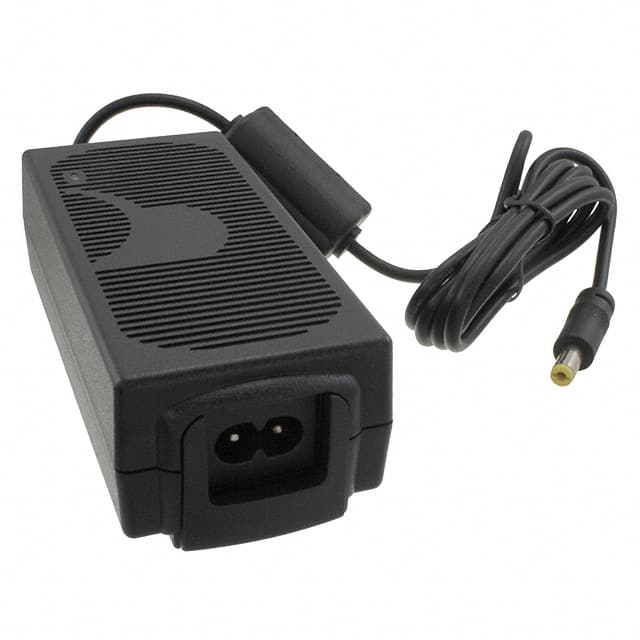

This GlobTek RR9KE5000CCPCIMR6B is a versatile AC/DC power adapter designed for both desktop and wall-mount applications. It provides a stable 12V DC output at a maximum current of 5A, delivering a total of 60W of power.
The adapter accepts a wide input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use. It features a 5.5mm x 2.1mm barrel plug output with center positive polarization and a 1.2-meter cord. The unit is designed with a Class II form factor and meets USA DOE Level VI and EU Eco-design efficiency requirements.
Key specifications include an operating temperature range of -20°C to 40°C and a low no-load power consumption of 150mW maximum. The adapter is approved by multiple agencies including CE, cETLus, and UL, ensuring compliance with various safety and performance standards for ITE (Commercial) and Medical applications.
100-240 VAC at 50-60 Hz.
12V DC at 5A.
60W.
-20°C to 40°C.
Level VI.
5.5x2.1mm barrel plug, center positive, 11mm length.
BSMI, CB, CCC, CE, cETLus, EAC, ETL, LPS, PSE, RCM, UKRSepro, UL, VCCI.
