Mfr Part #:

RR9KE3000T00CIMR6B

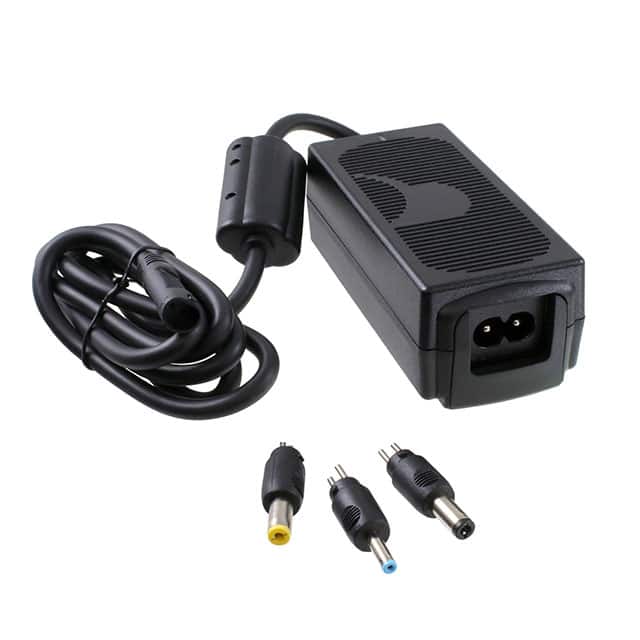

The GlobTek RR9KE3000T00CIMR6B is a 36W AC-DC power supply with a 12V output. It features a versatile desktop/wall mount design and Level VI efficiency.

Stock on Request

RR9KE3000T00CIMR6B Description

Short technical summary and product information.

The GlobTek RR9KE3000T00CIMR6B is a regulated switchmode AC-DC power supply designed for ICT/ITE and medical applications. It offers a 12V output at 3A, delivering a total of 36W of power.

This power supply meets USA DoE Level VI efficiency standards and is capable of meeting EU 2019/1782 and USA DoE Level VII requirements under specific conditions. It accepts a universal input voltage range of 100-240V AC at 50-60 Hz and features an IEC 60320/C8 input connector. The output configuration includes a 1200 mm cord with a T-plug system, which supports interchangeable plugs (5.5x2.5mm, 5.5x2.1mm, 3.5x1.3mm) for broad compatibility.

The unit is housed in a GlobTek Black case and has dimensions of 102.2mm x 47.5mm x 36.7mm. It operates within a temperature range of -10°C to 40°C and has a low no-load power consumption of 75mW maximum. The power supply is suitable for household appliances, ITE commercial, and medical applications, with numerous international approvals including cETLus, CE, FCC, and UL.

Designed for flexibility, it can be used as a desktop or wall mount adapter. The output connector system is designed for medical-grade, locking, polarized, and single-use applications once installed.

RR9KE3000T00CIMR6B Quick Information

Product Type: AC DC Desktop, Wall Adapters

Canonical Name: GlobTek, Inc. RR9KE3000T00CIMR6B AC-DC Power Supply

Subcategory: Desktop/Wall Mount Adapter

RR9KE3000T00CIMR6B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RR9KE3000T00CIMR6B Features

36W AC-DC power supply with 12V output.
Universal 100-240V AC input range.
Level VI efficiency rating for energy savings.
Interchangeable output plug system included.
Desktop and wall mountable form factor.

RR9KE3000T00CIMR6B Applications

Suitable for medical equipment power.
Ideal for ITE commercial devices.
Powers household appliances reliably.
Flexible international voltage operation.

RR9KE3000T00CIMR6B FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage and current of the RR9KE3000T00CIMR6B?

The RR9KE3000T00CIMR6B has an output voltage of 12.0V and an output current of 3.0A.

What is the power rating of the GlobTek RR9KE3000T00CIMR6B?

The power rating of the RR9KE3000T00CIMR6B is 36W.

What is the input voltage range for this power supply?

The input voltage range for the RR9KE3000T00CIMR6B is 100-240V AC.

What efficiency level does the RR9KE3000T00CIMR6B meet?

The RR9KE3000T00CIMR6B meets Level VI efficiency.

What are the operating temperature limits for this adapter?

The operating temperature range for the RR9KE3000T00CIMR6B is -10°C to 40°C.

What type of output connectors are supported by the RR9KE3000T00CIMR6B?

The RR9KE3000T00CIMR6B supports a T-plug system with interchangeable barrel plugs including 5.5x2.5mm, 5.5x2.1mm, and 3.5x1.3mm.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	GlobTek, Inc.
Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, VCCI
Cord Length	1.20 m (47.2")
Current	3.0 A
Efficiency	Level VI
Form	Desktop, Wall Mount (Class I)
Height	36.7mm (1.45")
Input Connector	IEC 320-C8, Multi-Blade (Sold Separately)
Input Type	Cord (Sold Separately)
Input Voltage	100-240 VAC
Length	102.2mm (4.02")
No Load Power Consumption	75mW (Max)
Operating Temperature	-10°C ~ 40°C
Output Connector	Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm)
Polarization	Negative Center
Power (Watts)	36 W
Region Utilized	International
Standard Number	1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1
Voltage	12.0 V
Width	47.5mm (1.87")
