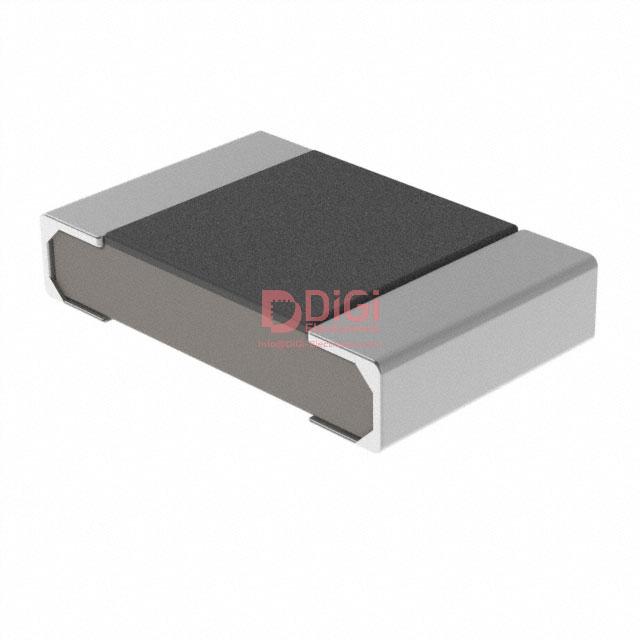

RR0306P-470-D The Susumu RR0306P-470-D is a 0201 size thin film chip resistor with a resistance of 47 Ohms and a tolerance of ±0.5%. It has a power rating of 1/20W.
Mfr Part #:

RR0306P-470-D

Available from 1 distributors
Mfr Name: Susumu
Susumu
The Susumu RR0306P-470-D is a 0201 size thin film chip resistor with a resistance of 47 Ohms and a tolerance of ±0.5%. It has a power rating of 1/20W.
Stock on Request
$ Price Range: $0.02

RR0306P-470-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Kinova ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RR0306P-470-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RR0306P-470-D Description

Short technical summary and product information.

This Susumu RR0306P-470-D is a surface mount chip resistor from the RR0306 series. It features a thin film composition and is designed for precision applications.



The resistor has a resistance value of 47 Ohms with a tight tolerance of ±0.5%. Its power rating is 1/20W (0.05W), and it operates within a temperature range of -55°C to 125°C, with a temperature coefficient of ±25ppm/°C.



The component is housed in a 0201 package size (0603 Metric), measuring 0.60mm in length and 0.30mm in width, with a height of 0.26mm. It has 2 terminations and is suitable for surface mounting.



This resistor is ideal for applications requiring precise resistance values and stable performance over a wide temperature range. Its compact size makes it suitable for densely populated circuit boards.

RR0306P-470-D Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RR0306
Canonical Name: Susumu RR0306P-470-D Thin Film Chip Resistor
Subcategory: Surface Mount

RR0306P-470-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RR0306P-470-D Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RR0306P-470-D Features

  • Thin film composition for precision applications.
  • 47 Ohm resistance with ±0.5% tolerance.
  • 1/20W power rating suitable for small electronics.
  • Wide operating temperature range of -55°C to 125°C.
  • Compact 0201 (0603 Metric) package size.

RR0306P-470-D Applications

  • Ideal for high-density circuit designs.
  • Suitable for precision electronic applications.
  • Used in consumer electronics devices.
  • General purpose surface mount resistor.

RR0306P-470-D FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RR0306P-470-D?

The resistance value is 47 Ohms.

What is the tolerance of the Susumu RR0306P-470-D chip resistor?

The tolerance is ±0.5%.

What is the power rating of this chip resistor?

The power rating is 0.05W, or 1/20W.

What is the operating temperature range for the RR0306P-470-D?

The operating temperature range is -55°C to 125°C.

What is the package size of the Susumu RR0306P-470-D?

The package size is 0201 (0603 Metric).
