| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

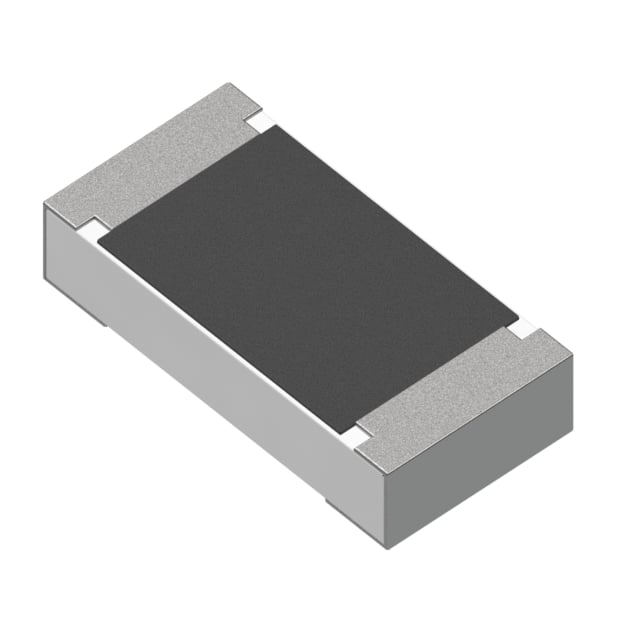

This TE Connectivity RQ73C2A66R5BTD is a high-precision thin film chip resistor from the RQ73 series. It offers a resistance value of 66.5 Ohms with a tight tolerance of ±0.1% and a power rating of 0.2W (1/5W). The resistor operates within a temperature range of -55°C to 155°C and features a temperature coefficient of ±10ppm/°C.
Constructed with a TaN thin film element and a special passivation layer, this resistor is AEC-Q200 qualified and sulfur-resistant, making it suitable for demanding automotive applications. It also finds use in medical equipment, measuring instruments, and industrial applications. The component is housed in an 0805 (2012 Metric) surface mount package with dimensions of 2.00mm x 1.25mm.
Key features include its thin film composition, anti-sulfur properties, and automotive AEC-Q200 rating. The resistor is designed for reliable performance in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 66.5 Ohms.
The tolerance is ±0.1%.
The power rating is 0.2W, or 1/5W.
The temperature coefficient is ±10ppm/°C.
The operating temperature range is -55°C to 155°C.
This resistor is in an 0805 (2012 Metric) package.
Yes, this resistor is AEC-Q200 qualified.
