| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

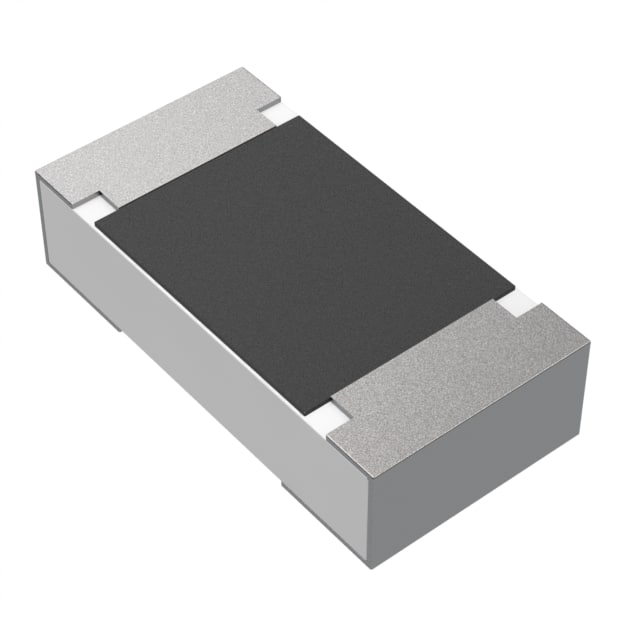

This TE Connectivity RQ73C1J36K5BTD is a surface-mount thin film precision resistor from the RQ73 series. It features a resistance value of 36.5 kOhms with a tight tolerance of ±0.1% and a power rating of 0.15W at 85°C. The resistor is AEC-Q200 qualified, making it suitable for automotive applications, as well as medical equipment, measuring instruments, and industrial uses.
Constructed with a special passivation layer on the resistive element, this resistor offers sulfur resistance and is RoHS compliant. It operates across a wide temperature range of -55°C to 155°C with a temperature coefficient of ±10ppm/°C. The component comes in a compact 0603 (1608 Metric) package, measuring 1.55mm in length and 0.80mm in width, with a height of 0.60mm.
Key electrical characteristics include a maximum working voltage of 75V and a maximum overload voltage of 150V. The thin film composition ensures precise performance. This resistor is designed for surface mounting, offering reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 36.5 kOhms.
The tolerance is ±0.1%.
The power rating is 0.15W at 85°C.
The temperature coefficient is ±10ppm/°C.
The operating temperature range is -55°C to 155°C.
It is in a 0603 (1608 Metric) package.
Yes, the resistor is AEC-Q200 qualified.
