| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

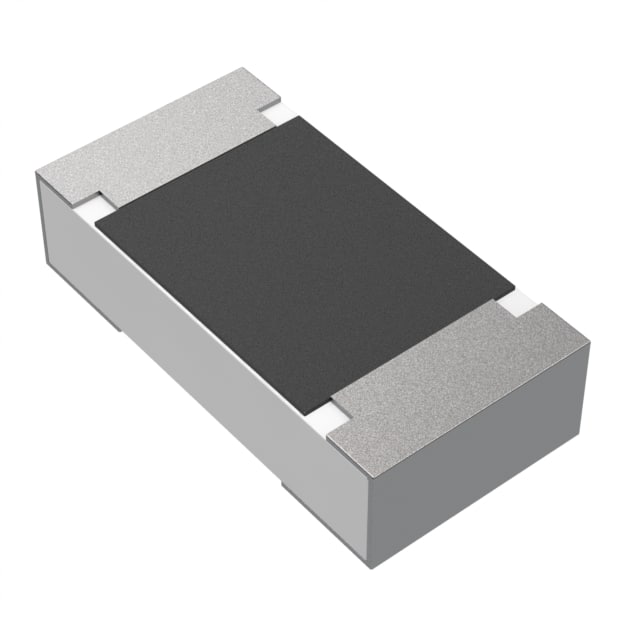

The TE Connectivity RQ73C1E5K23BTD is an automotive-grade, AEC-Q200 qualified thin film precision chip resistor. It is constructed with high-grade raw materials and laser-trimmed for precise tolerance figures.
This resistor features a resistance value of 5.23 kΩ with a tight tolerance of ±0.1% and a temperature coefficient of ±10ppm/°C. It has a power rating of 0.063W (1/16W) and an operating temperature range of -55°C to 155°C.
The component comes in a compact 0402 (1005 metric) surface-mount package with dimensions of 1.00mm L x 0.50mm W. Its construction includes a special passivation layer on the resistive element and an anti-corrosive protection layer, making it suitable for demanding applications.
Ideal for automotive applications, this resistor is also well-suited for medical equipment, measuring instruments, and industrial applications due to its sulfur resistance and overall reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 5.23 kΩ.
The tolerance is ±0.1%.
The power rating is 0.063W or 1/16W.
The temperature coefficient is ±10ppm/°C.
The operating temperature range is -55°C to 155°C.
The resistor is in a 0402 (1005 Metric) package.
Yes, the RQ73C1E5K23BTD resistor is AEC-Q200 qualified.
