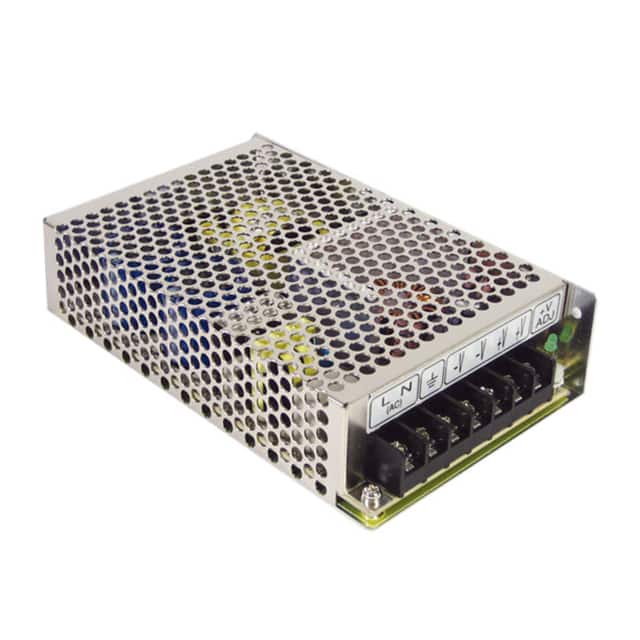

The Mean Well USA RQ-85C is a versatile 83W enclosed AC/DC power supply designed for ITE (Commercial) applications. It offers four distinct output voltages: CH1 at 5V, CH2 at 15V, CH3 at -5V, and CH4 at -15V, each with specific current ratings.
This converter operates within a wide input voltage range of 88-264 VAC or 125-373 VDC, ensuring compatibility in various power environments. It boasts an efficiency of 77% and features like adjustable output and universal input. The unit is designed for chassis mounting, making it suitable for integration into larger systems.
Key specifications include a typical hold-up time of 100ms at full load and an inrush current of 40A at 230VAC. The operating temperature range is -25°C to +70°C, with protection against overload and over-voltage via a hiccup mode that recovers automatically. Safety standards include UL60950-1 and TUV EN60950-1 approval, with compliance to EN55022 Class B and EN61000-3-2,-3 standards.
The RQ-85C provides four outputs: +5V, +15V, -5V, and -15V.
-25°C to +70°C.
88-264VAC or 125-373VDC.
77%.
Overload protection at 110-150% rated output power and over voltage protection with hiccup mode and automatic recovery.
UL60950-1 and TUV EN60950-1 approved.
159.0mm x 97.0mm x 38.0mm (6.26" x 3.82" x 1.50").
