| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Compliance | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

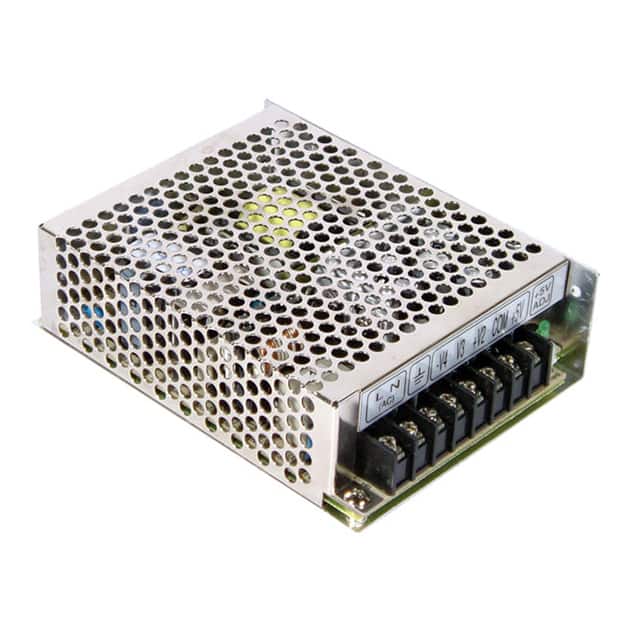

The Mean Well RQ-65B is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides multiple outputs: 5V, 12V, -5V, and -12V, with a total power rating of 63W. The unit supports adjustable output voltages and features a universal input range of 88~264VAC.
Key electrical specifications include a rated current of 6A on the 5V output and 0.5A on the -12V output. The efficiency is typically 76%, and it operates within a wide input voltage range. The converter is designed for chassis mounting.
Thermal specifications include a working temperature range of -25°C to +70°C with derating, and a storage temperature range of -40°C to +85°C. The MTBF is rated at a minimum of 245.5K hours at 25°C.
Safety and compliance standards met include UL60950-1, TUV EN60950-1, EN55022 Class B, and EN61000-3-2,-3. It is RoHS3 compliant and has an MSL of 1.
The RQ-65B provides four outputs: CH1 5V, CH2 12V, CH3 -5V, CH4 -12V.
The RQ-65B is an enclosed AC/DC converter designed for chassis mount.
-25°C to +70°C.
88-264VAC or 125-373VDC.
76% typical.
Overload protection at 110-150% rated power, over voltage protection on CH1 at 5.75-6.75V, and hiccup mode auto-recovery.
129.0mm x 98.0mm x 38.0mm.
