| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Power Supply Type | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

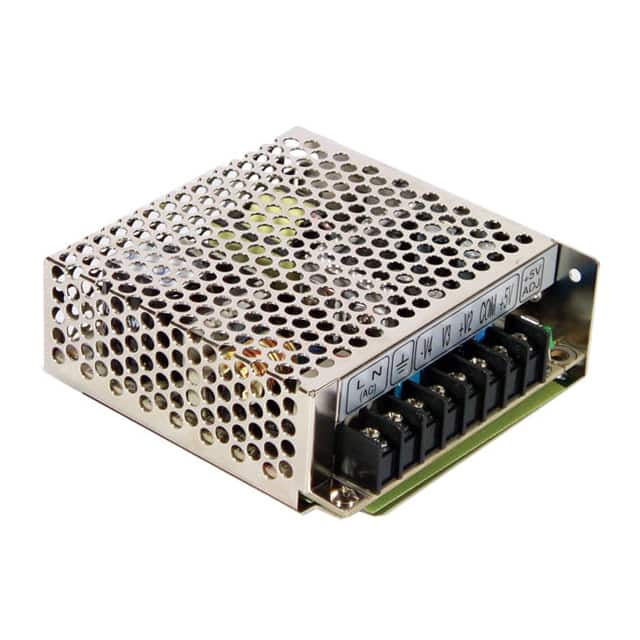

The Mean Well USA RQ-50C is a 50W enclosed AC/DC switching power supply designed for chassis mounting. This unit provides four outputs, including voltages such as -15V, with a maximum output current of 500 mA. It operates efficiently at 75% and is rated for a wide temperature range of -25°C to 70°C with derating.
The power supply measures 99.0mm in length, 97.0mm in width, and 36.0mm in height. Its features include adjustable output and universal input capabilities, making it versatile for various applications. It is approved by CB, CE, cURus, and TUV.
Designed for ITE (Commercial) applications, the RQ-50C series offers reliable power conversion. Its enclosed type and chassis mount design facilitate integration into various systems.
50W.
4 outputs.
5V, 15V, -5V, -15V.
0.5A (500 mA).
75%.
-25°C to 70°C with derating.
Chassis mount.
