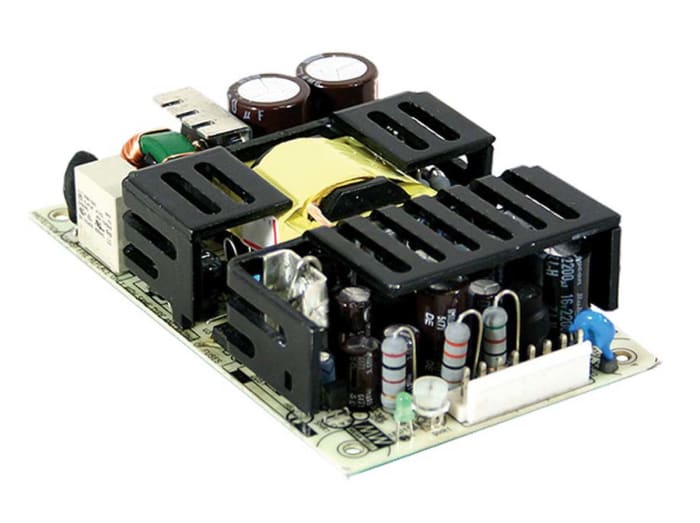

The Mean Well RPT-75D is a versatile 73W switching power supply designed for various applications, including medical equipment. It offers a universal input voltage range of 90-264V ac and 127-370V dc, providing flexibility for global use.
This power supply features a triple output configuration with a maximum output voltage of 24V dc and a nominal output current of 1A. Its chassis mount design and compact dimensions (127mm x 76.2mm x 31mm) make it suitable for integration into various systems. The RPT-75D boasts an efficiency of 79% and operates within a temperature range of -20°C to 70°C with derating.
Key features include adjustable output voltage and low leakage current, enhancing its utility in sensitive applications. The unit is compliant with numerous safety standards and approvals, including BSMI, UL 62368-1, TUV BS EN/EN 62368-1, and others, ensuring reliable performance and safety. It also meets EMC standards EN 55022 Class B and harmonic current compliance to EN 61000-3-2.
90-264VAC or 127-370VDC.
-20°C to 70°C (with derating).
3
24V DC.
Chassis Mount.
CB, CE, cURus, TUV.
79%.
