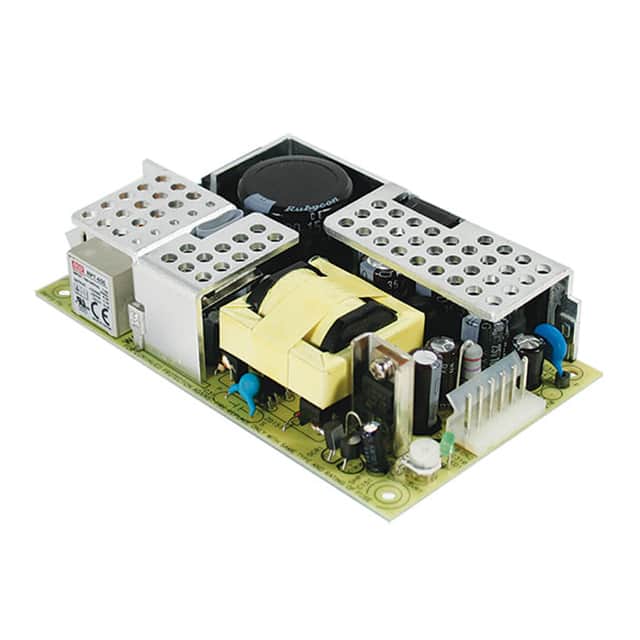

The Mean Well USA RPT-65E is a versatile 65W AC/DC power supply designed for various applications. This open-frame converter operates with a universal AC input range of 90-264VAC and provides three output voltages: 12V, 5V, and -5V. It features adjustable output on the primary 12V channel, with a range of 11.4-12.8V.
Key electrical specifications include a maximum output current of 5.8A on the 12V channel, 1.5A on the 5V channel, and 0.7A on the -5V channel. The unit boasts an efficiency of 77% and low leakage current below 1mA, making it suitable for sensitive applications. Protections include short circuit, overload, and over voltage.
Designed for chassis mounting, the RPT-65E has dimensions of 127 x 79 x 29 mm. It operates within a temperature range of -25°C to +70°C. Safety standards include UL60950-1 and TUV EN60950-1, with EMC compliance to EN55022 Class B and various EN61000 standards. This series is backed by a 2-year warranty.
The RPT-65E accepts 90~264VAC or 127~370VDC.
It provides three outputs: 12V, 5V, and -5V.
The operating temperature range is -25~+70°C.
The dimensions are 127 x 79 x 29 mm (length x width x height).
It includes short circuit, overload, and over voltage protection.
Free air convection for 65W operation; 18 CFM forced air for up to 80W.
It complies with UL60950-1 and TUV EN60950-1.
