| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Type | |
| Voltage |

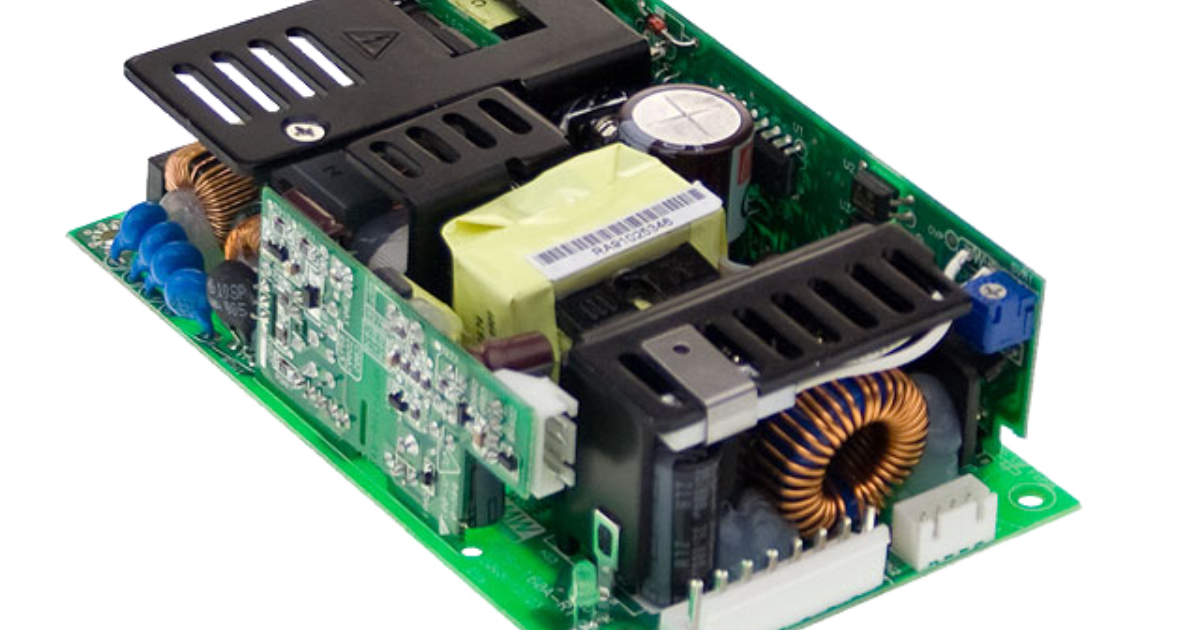

The Mean Well USA RPT-160A is a 96W AC/DC converter designed for medical applications. It offers a universal AC input range of 90-264VAC and provides three output voltages: 5V, 12V, and -5V. The converter operates within a temperature range of -20°C to 70°C with derating and has an efficiency of 84%.
This open frame power supply features a chassis mount type and a compact size of 127.0mm x 76.2mm x 34.5mm. It includes built-in active PFC function and protections for short circuit, overload, and over voltage. The RPT-160A series is approved by CB, CE, cURus, and TUV, meeting safety standards like UL60601-1 and EN60601-1.
Key features include adjustable output voltage with +/- 10% tolerance and a power good/fail signal output. It is suitable for applications requiring reliable and safe power conversion in medical equipment.
The RPT-160A provides three output voltages: 5V, 12V, and -5V.
The RPT-160A has a rated power output of 96W, with a capability of 141W under forced air.
The operating temperature range for the RPT-160A is -20°C to 70°C, with derating.
The RPT-160A uses chassis mount.
Yes, the RPT-160A is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the RPT-160A is 1 Unlimited.
