| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions - Height | |
| Dimensions - Length | |
| Dimensions - Width | |
| Efficiency | |
| Features | |
| Isolation Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage |

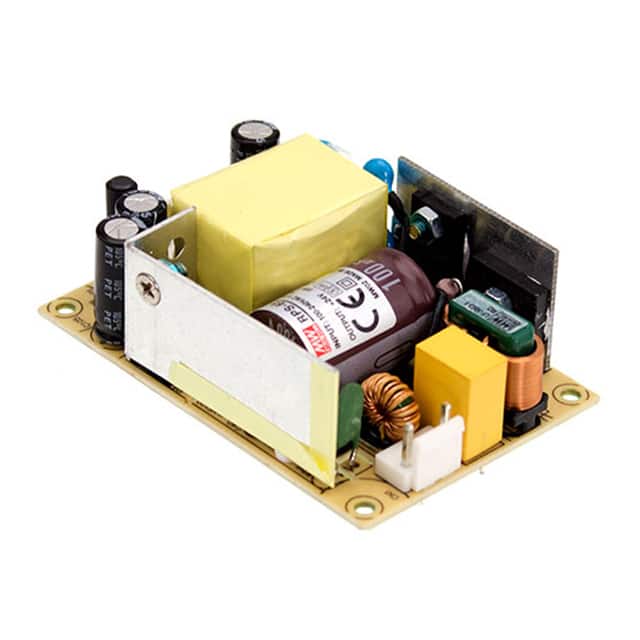

The Mean Well USA RPS-65-15 is a 65W open frame AC/DC converter designed for medical and industrial applications. It delivers a single 15V output at 4.34A from an 80-264VAC input range. The converter achieves up to 89% efficiency and maintains no load power consumption below 0.1W.
This converter is approved to medical safety standards with 2xMOPP isolation and is suitable for BF rated patient contact equipment. It features 4kV isolation voltage, extremely low leakage current below 100µA, and protections against short circuit, overload, and over voltage. EMI compliance is Class B for class II system configurations.
The RPS-65-15 is housed in a compact 3" x 2" open frame package with chassis mount capability. It operates from -30°C to 70°C with derating and is cooled by free air convection. The unit is designed for altitudes up to 4000 meters.
The RPS-65-15 provides a single 15V output at 4.34A.
The input voltage range is 80 to 264 VAC.
The operating temperature range is -30°C to 70°C with derating.
The RPS-65-15 is listed as RoHS3 compliant, but this status is unverified.
It includes short circuit, overload, and over voltage protections.
It is approved to 2xMOPP medical safety standards and is suitable for BF rated patient contact applications.
