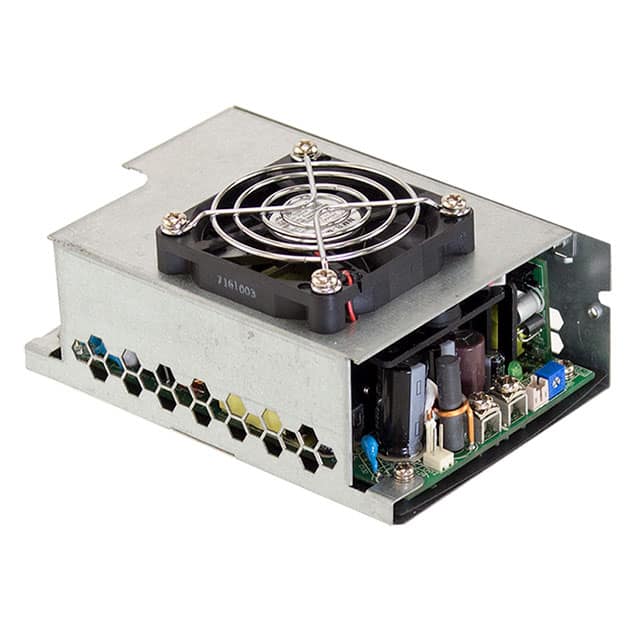

The MEAN WELL RPS-500 series medical power supplies offer 2 x MOPP medical safety approvals, making them suitable for OEMs producing medical equipment for international markets. This specific model, the RPS-500-24-TF, provides a 24VDC output with a rated power of 499.2W (fan cooled) and a current of 20.8A (fan cooled). It boasts a high efficiency of 93% and accepts a universal AC input range of 80-264VAC.
Designed with features such as adjustable output, PFC, remote sense, and a standby output, this power supply is versatile. It also includes 'Power Good' and 'Power Fail' TTL signals for remote status monitoring. The RPS-500-24-TF is an enclosed type with a chassis mount, measuring 130.0mm x 86.0mm x 58.5mm. It operates within a temperature range of -30°C to 70°C with derating and has an isolation voltage of 4 kV.
Key specifications include a low leakage current and no-load power consumption. The series is available in various configurations, including open frame PCB, caged, caged with top mount fan, and caged with side mount fan. This model is approved by CB, CE, cURus, EAC, and TUV, ensuring compliance for global use.
The input voltage range is 80 to 264 VAC.
The operating temperature range is -30°C to 70°C with derating.
The converter is chassis mount, enclosed, with dimensions 130.0mm x 86.0mm x 58.5mm.
The output voltage is 24 VDC.
The power rating is 499.2W fan cooled (321.6W convection).
The efficiency is 93%.
It is approved by CB, CE, cURus, EAC, and TUV.
