| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Power (Watts) | |
| Type | |
| Voltage |

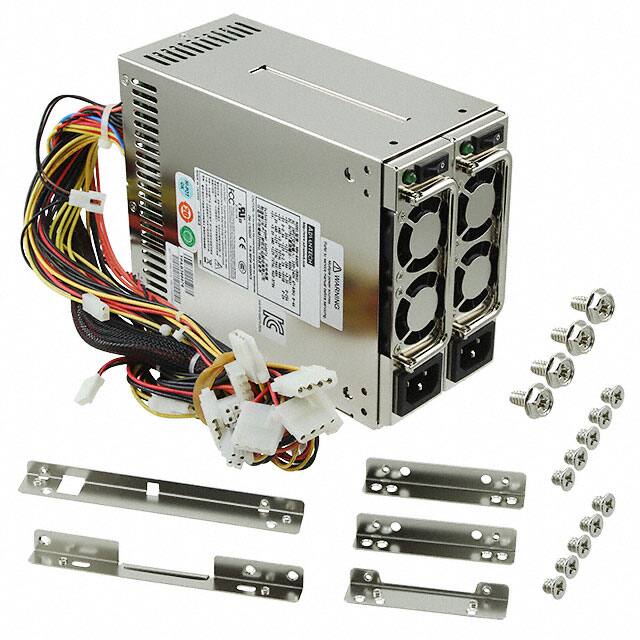

The Advantech Corp RPS-400ATX-ZE is an enclosed AC/DC converter with a power output of 400W. It is designed for chassis mount applications and is suitable for ITE (Commercial) use.
The converter accepts an input voltage range of 100 to 240 VAC at frequencies of 47 to 63 Hz, with an input current draw between 4 and 8 A. It provides five distinct output voltages: +5V @ 35A (3A min), +3.3V @ 25A (1A min), +12V @ 28A (2A min), -12V @ 1.2A, -5V @ 0.5A, and +5Vsb @ 2A.
Key specifications include a Mean Time Between Failures (MTBF) of 100,000 hours at 25°C. The physical dimensions are 86.1mm in height, 150.1mm in width, and 184.9mm in length (3.39" x 5.91" x 7.28"). The unit is certified by CB, CCC, TUV, and UL.
This power supply is suitable for various industrial and commercial applications requiring stable and reliable power conversion.
The wattage of the RPS-400ATX-ZE is 400W.
The input voltage range is 100 to 240 VAC.
The RPS-400ATX-ZE provides +5V @ 35A (3A min), +3.3V @ 25A (1A min), +12V @ 28A (2A min), -12V @ 1.2A, -5V @ 0.5A, and +5Vsb @ 2A.
The dimensions are 86.1mm in height, 150.1mm in width, and 184.9mm in length.
The RPS-400ATX-ZE is RoHS3 Compliant.
