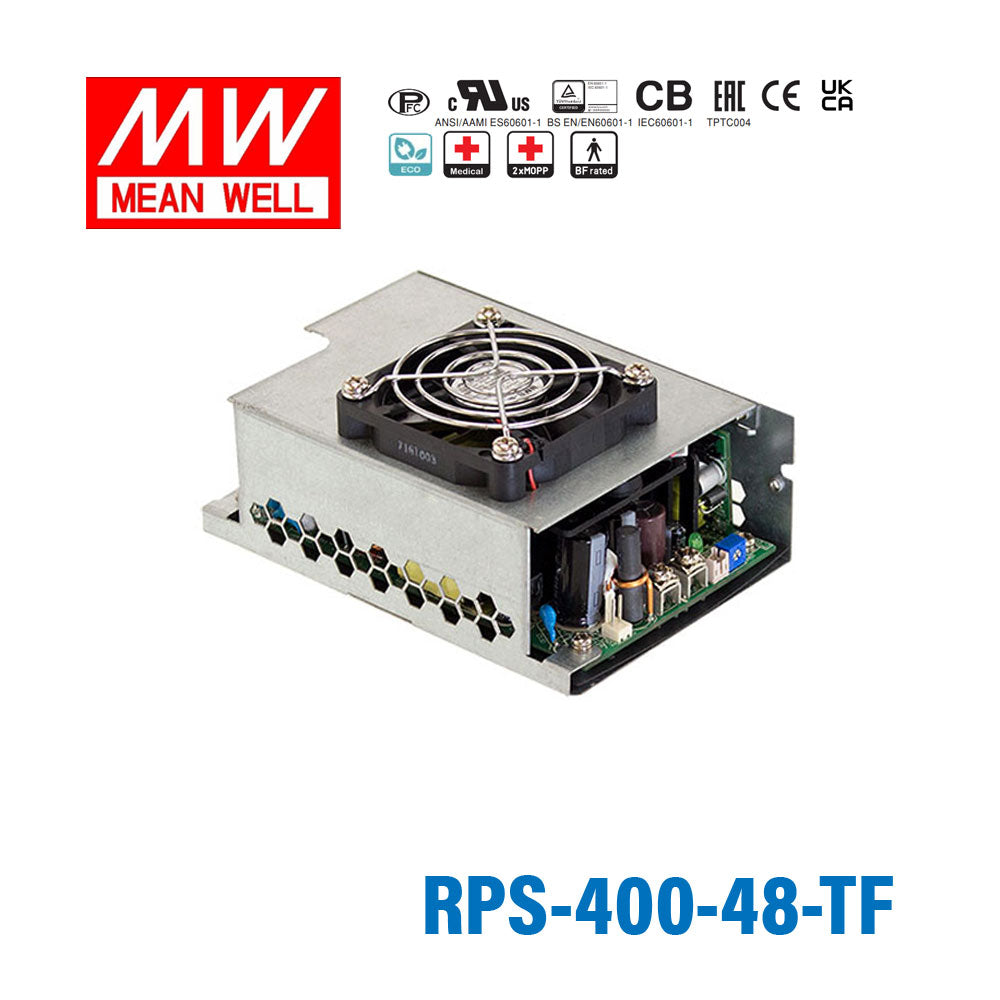

The Mean Well RPS-400-48-TF is a 254.4W open-frame AC to DC power supply designed for various applications. It features a wide input voltage range of 80~264VAC and provides a stable 48V output at a rated current of 5.3A.
This power supply operates efficiently with a typical efficiency of 94% and can function within an extended temperature range of -30°C to +70°C, with derating. Its compact dimensions of 5.11" x 3.39" x 2.62" make it suitable for chassis mounting in space-constrained designs.
Key features include adjustable output, remote sense capabilities, and universal input. The RPS-400-48-TF is also certified by CB, CE, cURus, and TUV, indicating compliance with various safety standards. It is identified as a medical power supply with extreme low leakage current.
This model is appropriate for 48V factory automation, process control equipment, embedded systems, communications hardware, and medical electronics platforms, provided the total load does not exceed its output ratings.
The RPS-400-48-TF provides a 48V output voltage.
The rated current for the RPS-400-48-TF is 5.3A.
The RPS-400-48-TF has a total power output of 254.4W.
The input voltage range for the RPS-400-48-TF is 80~264VAC.
The RPS-400-48-TF operates between -30°C and +70°C.
The dimensions of the RPS-400-48-TF are 129.8mm x 86.1mm x 66.5mm.
Yes, the RPS-400-48-TF is identified as a medical power supply with medical safety approval and extreme low leakage current.
