| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Weight | |
| Width |

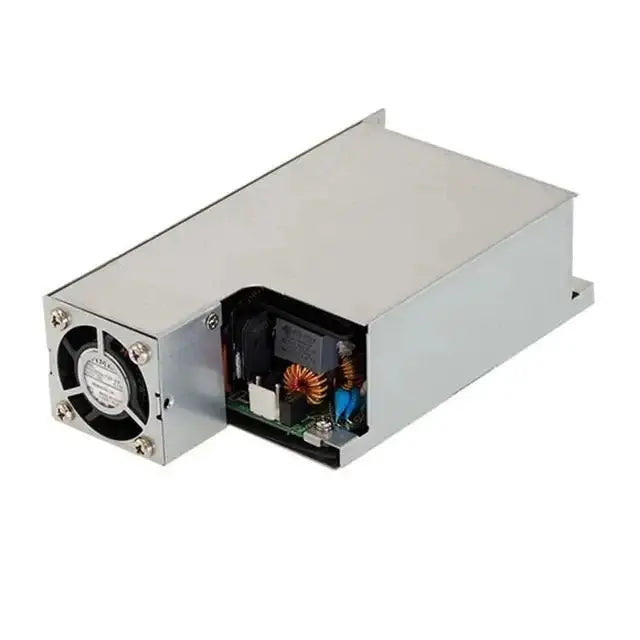

The Mean Well RPS-400-24-SF is an enclosed AC/DC power supply designed for versatile applications. It operates with a universal input voltage range of 80V~264VAC and provides a stable 24VDC output at 10.5A, totaling 252W of rated power. This unit is suitable for chassis mounting and offers features such as adjustable output, remote sense, and protections against short circuit, overload, over voltage, and over temperature.
With a compact size of 6.29 x 3.38 x 1.69 inches, the RPS-400-24-SF is designed for efficient integration into various systems. It boasts high efficiency up to 94% and a wide operating temperature range from -30°C to 70°C. The power supply also includes additional outputs for standby, fan supply, and power status signals, making it a robust solution for demanding environments, including medical applications.
Key electrical specifications include a DC adjustment range of ±10% and overload protection that operates in a hiccup mode with auto-recovery. The unit is built to withstand voltages up to 4KVAC between input and output. It also features a low no-load power consumption under 0.5W when PS-ON control is active.
| Qty | Low | High |
|---|---|---|
| 1+ | $104.68 | $104.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 80V to 264VAC and 113V to 370VDC.
The output voltage is 24V DC.
The maximum current output is 10.5A.
The power rating is 252W.
It is approved for medical safety (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1, and certified by CB, CE, cURus, and TUV.
-30°C to 70°C with derating.
Protections include short circuit, overload, over voltage, and over temperature.
