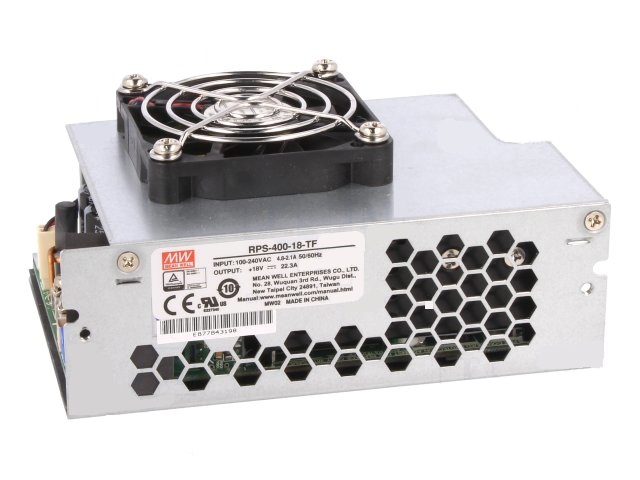

The Mean Well RPS-400-18-TF is an open-frame AC/DC power supply delivering 250W of power with a nominal output voltage of 18VDC. It accepts a wide input voltage range from 80 to 264VAC, making it suitable for global applications. This converter is designed for chassis mounting and features adjustable output, remote sense, and universal input capabilities.
With an efficiency of 93% and an operating temperature range of -30°C to 70°C (with derating), the RPS-400-18-TF is built for reliable performance. Its dimensions are 129.8mm in length, 86.1mm in width, and 66.5mm in height. The unit is approved by CB, CE, cURus, and TUV, and is suitable for medical applications.
Key electrical specifications include a 4kV isolation voltage and a single output. The power rating can reach up to 401W under forced air conditions. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The output voltage is 18VDC.
The nominal power rating is 250W, and it can reach 401W with forced air.
The input voltage range is 80-264VAC.
The dimensions are 129.8mm x 86.1mm x 66.5mm.
The operating temperature range is -30°C to 70°C with derating.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
