| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

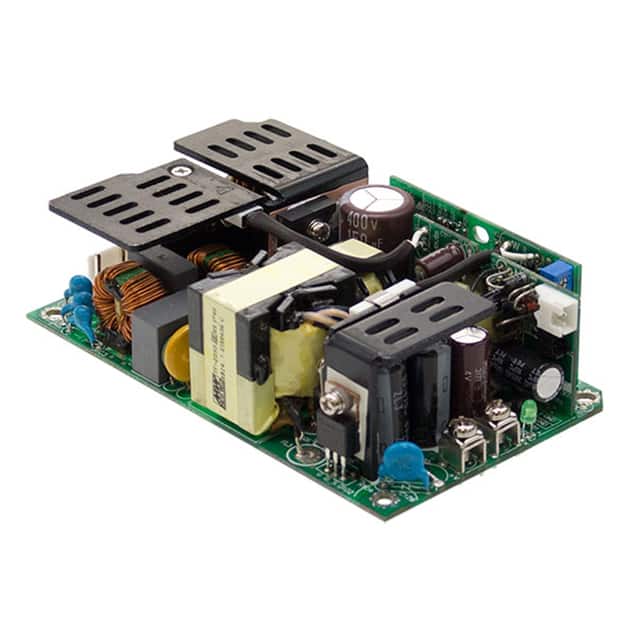

The Mean Well USA RPS-300-48 is an open frame AC/DC converter designed for various applications, including medical use. It provides a 48V output and delivers 200W of power, with a forced air rating of 300W. The converter boasts high efficiency at 93% and operates within a temperature range of -30°C to 70°C with derating.
Key features include adjustable output, remote sense, a standby output, and universal input. The unit is designed for chassis mounting and has dimensions of 127.0mm x 76.2mm x 34.8mm. It meets safety standards including CB, CE, cURus, and TUV approvals.
The output voltage is 48V.
The power rating is 200W, with a forced air rating of 300W.
The operating temperature range is -30°C to 70°C, with derating.
It supports chassis mount.
Key features include adjustable output, remote sense, standby output, and universal input.
