| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Isolation | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Convection) | |
| Power (Forced Air) | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

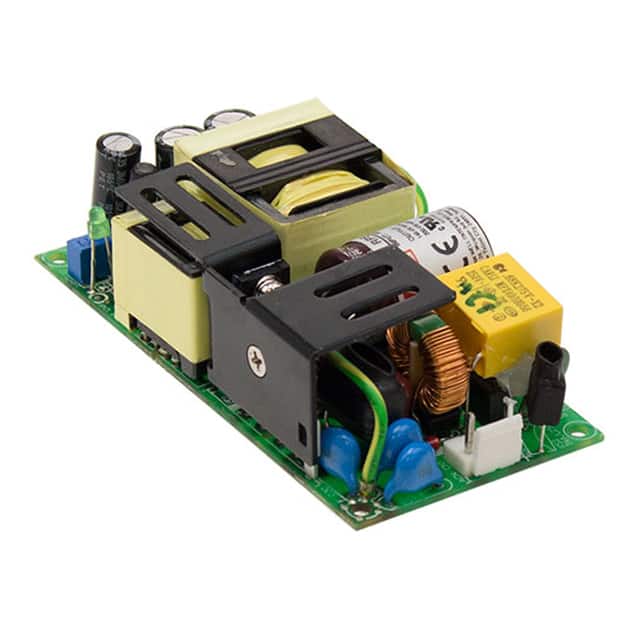

The Mean Well RPS-200-24 is an open frame AC/DC converter providing a single 24V output. It delivers 142W with convection cooling and up to 202W with forced air cooling. The output current is 5.9A.
Key electrical specifications include a high efficiency of 94%, 4kV input/output isolation, and an adjustable output feature. The operating temperature range is -30°C to 70°C with derating.
The converter is chassis mountable with dimensions 101.6mm x 50.8mm x 29.0mm. It is approved by CB, CE, cURus, and TUV agencies, making it suitable for medical applications.
24V DC.
-30°C to 70°C with derating.
It is listed as RoHS3 compliant, but this is unverified.
Chassis mount.
94% typical.
4kV.
142W with convection cooling, 202W with forced air.
