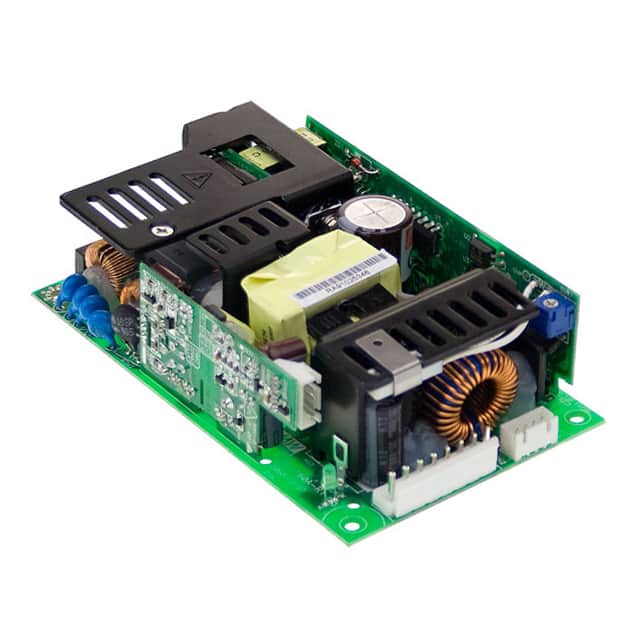

RPS-160-48 The RPS-160-48 from Mean Well USA is an open frame AC/DC converter providing 48V at 2.3A (110W). It features chassis mount, universal input, and adjustable output.
Mfr Part #:

RPS-160-48

Available from 1 distributors
Mfr Name: Mean Well USA
Mean Well USA
The RPS-160-48 from Mean Well USA is an open frame AC/DC converter providing 48V at 2.3A (110W). It features chassis mount, universal input, and adjustable output.
✓ Total Stock: 20 pcs

RPS-160-48 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RPS-160-48 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Medical Grade
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Storage Temperature
Type
Voltage
Width
View Similar Products (0)

RPS-160-48 Description

Short technical summary and product information.

The Mean Well USA RPS-160-48 is an open frame AC/DC converter designed for household appliances and medical applications. It delivers a single 48V output at 2.3A, providing 110W of continuous power (156W with forced air cooling).



This converter features universal input and adjustable output, with a high efficiency of 88% and 4kV isolation. It is approved by CB, CE, cURus, and TUV agencies.



The unit operates from -20°C to 70°C with derating. It measures 127.0mm x 76.2mm x 34.5mm and is chassis mounted.

RPS-160-48 Quick Information

Product Type: AC-DC Converter
Series: RPS-160
Canonical Name: Mean Well USA RPS-160-48 AC/DC Converter, Open Frame, 48V 2.3A, 110W
Subcategory: Open Frame Power Supplies

RPS-160-48 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RPS-160-48 Features

  • Open frame chassis mount design.
  • Single output 48V at 2.3A.
  • 110W continuous power (156W forced air).
  • 88% typical efficiency.
  • Universal input with adjustable output.

RPS-160-48 Applications

  • Used in household appliance power supplies.
  • Designed for medical device applications.

RPS-160-48 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the RPS-160-48?

48V

What is the maximum output current?

2.3A

What is the power rating?

110W (156W with forced air)

What is the operating temperature range?

-20°C to 70°C with derating

What approvals does the RPS-160-48 have?

CB, CE, cURus, TUV

What is the efficiency of this converter?

88%

What is the isolation voltage?

4kV
