| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

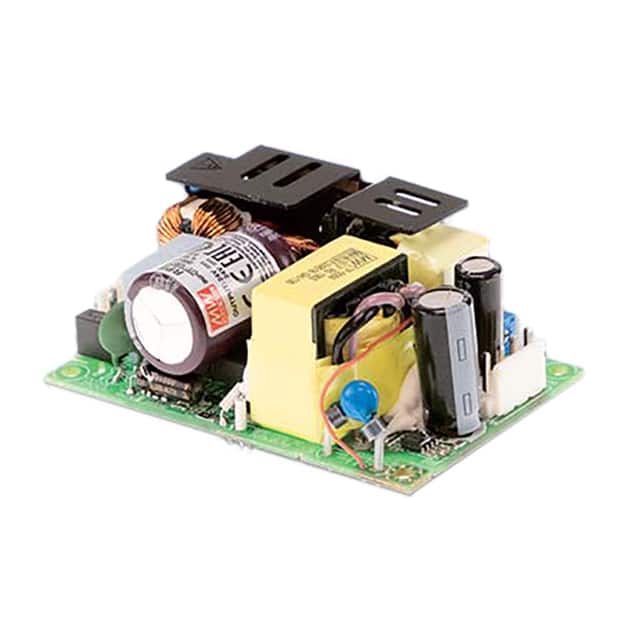

The Mean Well USA RPS-120S-15 is an open-frame AC/DC converter designed for chassis mounting. It provides a 15V output voltage and a maximum power of 114W, with a current rating of 7.6A.
Key electrical specifications include a high efficiency of 92% and universal input capability. The converter also features adjustable output and Power Factor Correction (PFC). Its isolation voltage is rated at 4 kV.
This AC/DC converter operates within a temperature range of -30°C to 85°C, with derating applied. It is approved by CB, CE, cURus, EAC, and TUV, making it suitable for various applications, including medical use.
The physical dimensions are 76.2mm in length, 50.8mm in width, and 28.0mm in height.
The operating temperature range is -30°C to 85°C with derating.
The efficiency is 92%.
The isolation voltage is 4 kV.
It has a single output.
It is approved by CB, CE, cURus, EAC, and TUV.
It is designed for medical applications.
It includes adjustable output, power factor correction (PFC), and universal input.
