| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,750 pcs
|
8750 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Power | |
| Response Time | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

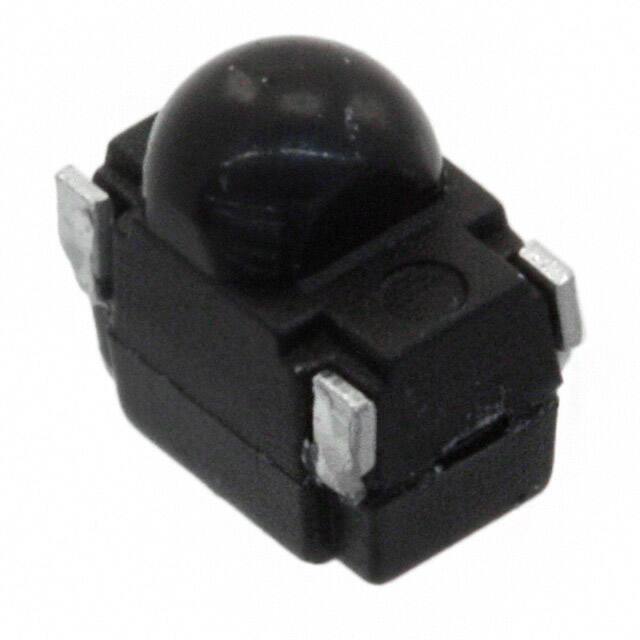

The ROHM Semiconductor RPM-012PBT97 is an ultra-small, high-sensitivity chip sensor designed for optical control equipment and as a receiver for sensors. It utilizes original technology, structure, and optical design to enable automatic mounting, reflow soldering, and high sensitivity.
Key electrical specifications include a collector-emitter voltage of 32V, a collector current of 500µA, and a power dissipation of 75mW. The sensor operates within a temperature range of -30°C to 85°C. Its peak sensitivity wavelength is 800nm, with a half-angle of ±12° and a response time of 10µs.
This phototransistor comes in a compact 4-SMD, No Lead package suitable for surface mounting. Its side view orientation and small footprint make it ideal for space-constrained applications. The device is RoHS3 compliant and has an MSL rating of 1.
Applications include optical control equipment and sensor receivers where precise light detection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage is 32V.
It comes in a 4-SMD, No Lead package.
The operating temperature is -30°C to 85°C.
The peak sensitivity wavelength is 800nm.
The half-angle, or viewing angle, is ±12 degrees.
The response time (tr·tf) is 10µs.
The dark current (ICEO) is 0.5µA.
