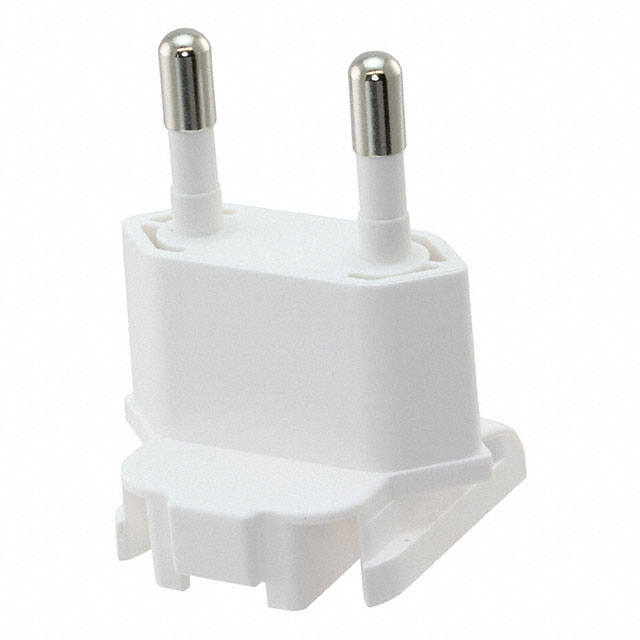

The Phihong USA RPH-MAB1W is an input plug specifically designed for use in Korea, functioning as an accessory for multi-plug wall adapters. This component is part of a 10W medical-grade adapter system, offering features such as LPS compliance, field-changeable AC plugs, and an IP21 rating.
Designed with safety and performance in mind, the RPH-MAB1W supports 2xMOPP isolation and is Class II rated. It is suitable for BF applications when used with system considerations. The adapter system it connects to provides OVP, OCP, SCP, OTP, brown-in, and brown-out protections, making it suitable for demanding applications.
Key specifications for the associated adapter include an AC input voltage rating of 115 to 230V AC and an operating range of 90 to 264V AC, with a frequency range of 47 to 63Hz. The output is 5V DC at up to 2A, with a maximum ripple of 100mV and ±5% regulation. The adapter meets DoE Level VI and CoC V5 Tier 2 efficiency standards.
This input plug is ideal for integrating with Phihong's medical-grade power adapters, ensuring reliable power delivery for home healthcare equipment, ECG machines, patient monitors, portable medical devices, and respirators.
The Phihong USA RPH-MAB1W is an input plug designed for Korea, serving as an accessory for multi-plug wall adapters.
The associated power adapter features DoE Level VI & CoC V5 Tier 2 efficiency, LPS compliance, field changeable AC plugs, IP21 rating, 2xMOPP isolation, and Class II rating.
The adapter provides a 5V DC output voltage at a maximum current of 2A.
The adapter accepts an AC input voltage range of 90 to 264V AC.
The adapter has dimensions of 71.7mm in length, 40mm in height, and 50mm in width.
The adapter operates within a temperature range of 5 to +40°C.
The adapter is certified to ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No.60601-1, IEC60601-1-2:2014(4TH Edition), IEC60601-1-6:2010 + AMD1:2013, IEC 60601-1:2005 + A1:2012 (Edition 3.1), IEC60601-1-11:2015, and IEC62366:2007 + A1:2014.
