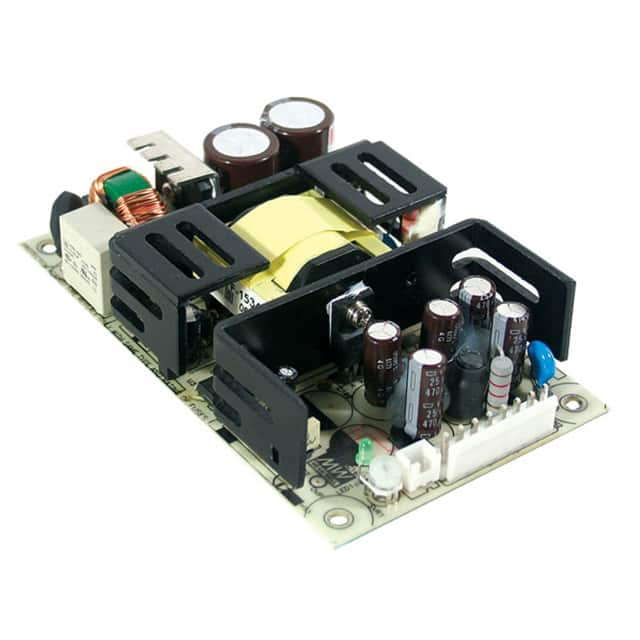

The Mean Well RPD-75B is a high-performance AC DC converter designed for various applications. This switching power supply delivers 73W of power with a 24V output voltage and a maximum output current of 5A across two outputs.
It features a universal input voltage range of 90-264V AC and 127-370V DC, making it suitable for global use. The RPD-75B boasts an efficiency of 79% and is designed for chassis mounting, with dimensions of 127mm x 76.2mm x 31mm.
Key specifications include an operating temperature range of -20°C to 70°C with derating. The unit complies with various standards and approvals such as BSMI, CCC, CSA, EAC, IEC, TUV, UL, and AS/NZS. It also meets EN 61000-3-2 harmonic current compliance and EN 55022 Class B EMC standards.
This power supply is suitable for medical applications and offers features like adjustable output voltage and short circuit, overload, and overvoltage protection.
The Mean Well RPD-75B has a 24V dc output voltage.
The RPD-75B power supply has 2 outputs.
The RPD-75B has a maximum output current of 5A.
The Mean Well RPD-75B has a power rating of 73W.
The RPD-75B accepts a universal input voltage range of 90V ac to 264V ac and 127V dc to 370V dc.
The RPD-75B operates within a temperature range of -20°C to 70°C, with derating applied.
The RPD-75B measures 127mm in length, 76.2mm in width, and 31mm in height.
