| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Force | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination Type, Color | |
| Illumination Voltage (Nominal) | |
| Ingress Protection | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

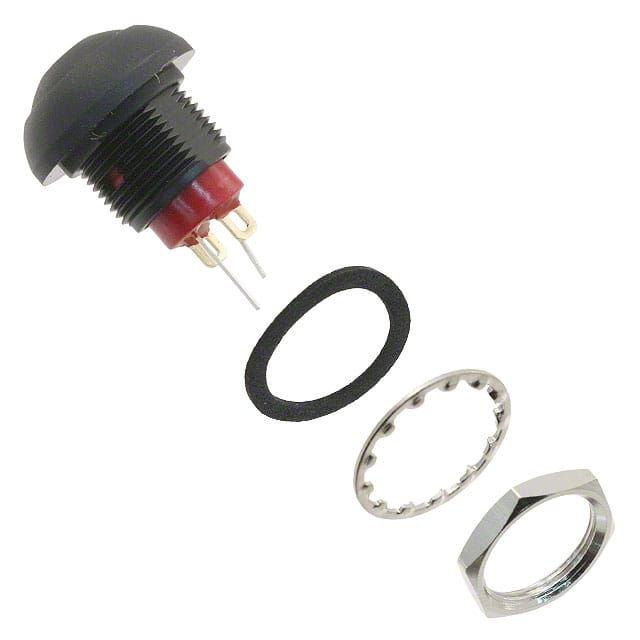

The E-Switch RP8100B2M1CEBLKBLKRED is a pushbutton switch from the RP8100 series. It features a standard, illuminated design with a round button actuator.
This switch has a contact arrangement of SPST-NO (Off-Mom) and is rated for 125mA at 125VAC or 100mA at 50VDC. It operates within a temperature range of -30°C to 85°C and offers a life expectancy of 500,000 cycles. The panel mount design is sealed to IP67 standards, providing protection against dust and water.
Key electrical specifications include a 125V voltage rating and a 2.1 VDC nominal illumination voltage for its red LED. The termination style is solder lug, and the panel cutout diameter is 13.60mm. The switch is black in color with no actuator marking.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -30°C to 85°C.
The RoHS status is RoHS3 Compliant.
The ingress protection rating is IP67.
The electrical rating is 125mA at 125VAC and 100mA at 50VDC.
This switch features red LED illumination with a nominal voltage of 2.1 VDC.
