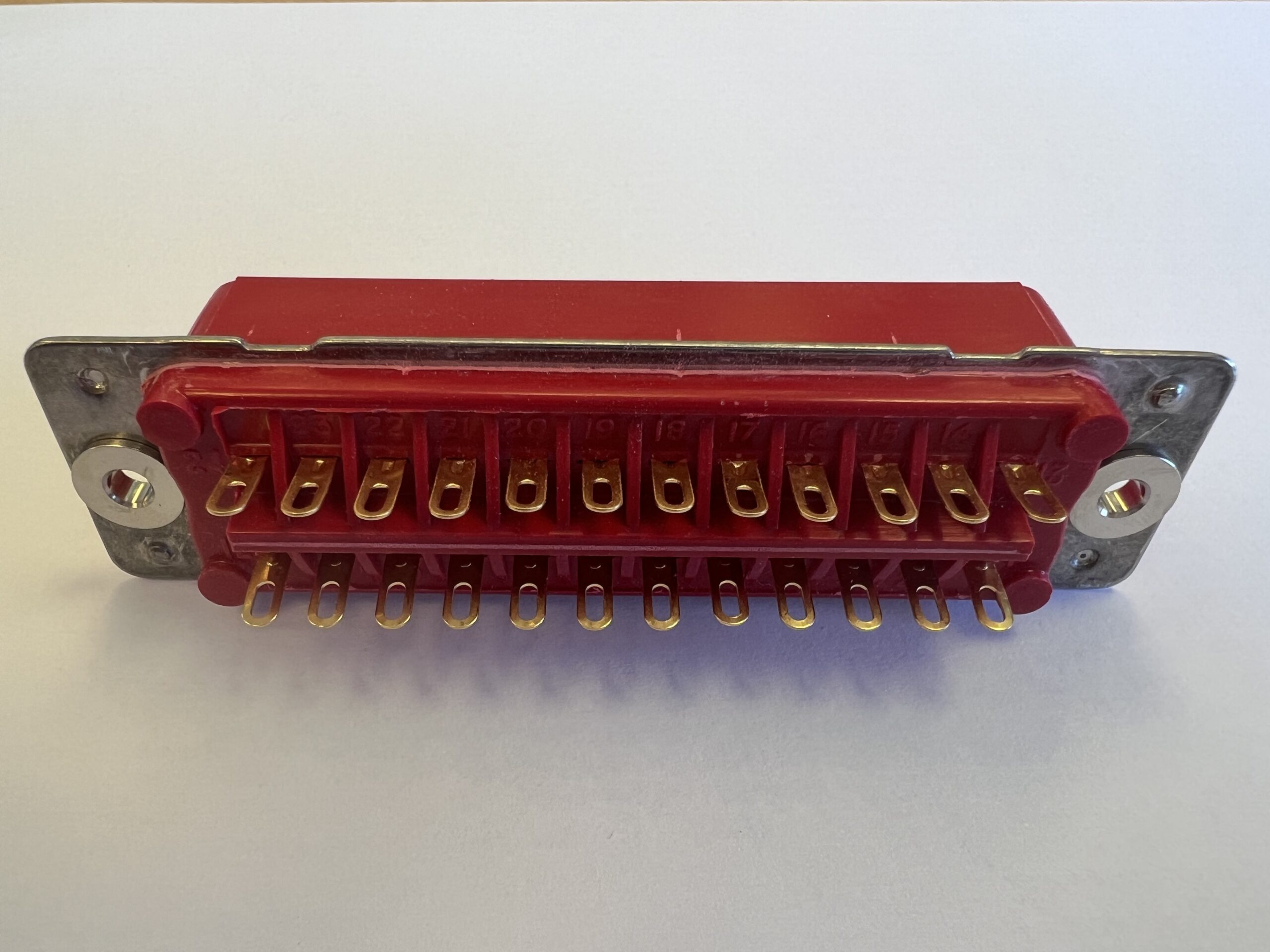

The ITW McMurdo Connectors RP24 is part of the Red Range of industrial rack and panel connectors. This 24-way connector is designed for PCB mounting and features solder termination.
It offers robust electrical performance with a current rating of 5A and a working voltage of 800V d.c. or a.c. peak. The connector has a proof voltage of 3.5kV d.c. or a.c. peak and maintains low contact resistance, initially 5mΩ max and after conditioning 10mΩ max. Insulation resistance is rated at 105MΩ min initially and 104MΩ min after conditioning.
Mechanically, the RP24 is rated for 500 operations with an insertion and withdrawal force of 2.3N max per contact pair. It is suitable for blind mating applications, featuring dowel polarization for alignment. The connector operates within a climatic category of 40/100/21.
This connector is available in four sizes and can be used for both PCB or cable mounting. Its rugged construction ensures reliability in industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RP24 has 24 positions.
The RP24 is rated for 5A maximum per contact when all contacts are simultaneously energized at 80°C Tamb.
The working voltage is 800V d.c. or a.c. peak.
The RP24 is designed for PCB mount with solder termination and is also available for cable mounting.
The initial contact resistance is 5mΩ maximum, and after conditioning it is 10mΩ maximum.
The initial insulation resistance is 10MΩ minimum, and after conditioning it is 100kΩ minimum.
The RP24 is rated for 500 mechanical operations.
