| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,035 pcs
|
2035 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

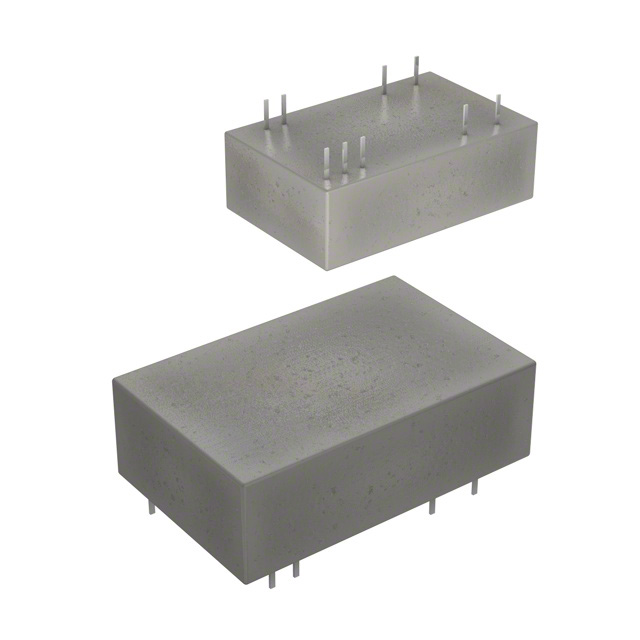

The RP12-2412DAW is a 12-watt isolated DC/DC converter from Recom Power's RP12-AW series. It accepts a wide 4:1 input voltage range of 9 to 36 VDC and provides dual regulated outputs of +12V and -12V, each capable of delivering 500 mA. The converter offers 1.6 kVDC input-to-output isolation and is certified to UL 60950-1 and cUL 60950-1, making it suitable for telecom and industrial applications requiring approved safety standards.
Key electrical features include remote on/off control (enable, active high), overcurrent protection (OCP), overvoltage protection (OVP), and short-circuit protection (SCP). Typical efficiency is 86%, and the operating temperature range spans -40°C to +65°C. The converter requires no minimum load for stable operation.
The RP12-2412DAW is housed in a 24-pin DIP module with 9 leads and a through-hole mounting style. Its compact dimensions are 31.8 mm x 20.3 mm x 10.2 mm. The DIP24 package meets military standards for thermal shock and vibration tolerance.
| Qty | Low | High |
|---|---|---|
| 1+ | $63.38 | $63.38 |
| 5+ | $61.02 | $61.02 |
| 7+ | $58.76 | $58.76 |
| 28+ | $53.18 | $53.18 |
| 56+ | $52.58 | $52.58 |
| 105+ | $52.09 | $52.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9 V to 36 V DC.
The converter provides dual outputs: +12V at 500 mA and -12V at 500 mA.
The isolation voltage is 1.6 kVDC.
The operating temperature range is -40°C to +65°C.
It uses a 24-DIP Module with 9 leads and through-hole mounting.
The RoHS status is listed as RoHS3 Compliant, but this is unverified.
It includes remote on/off, overcurrent protection (OCP), overvoltage protection (OVP), and short-circuit protection (SCP).
