| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

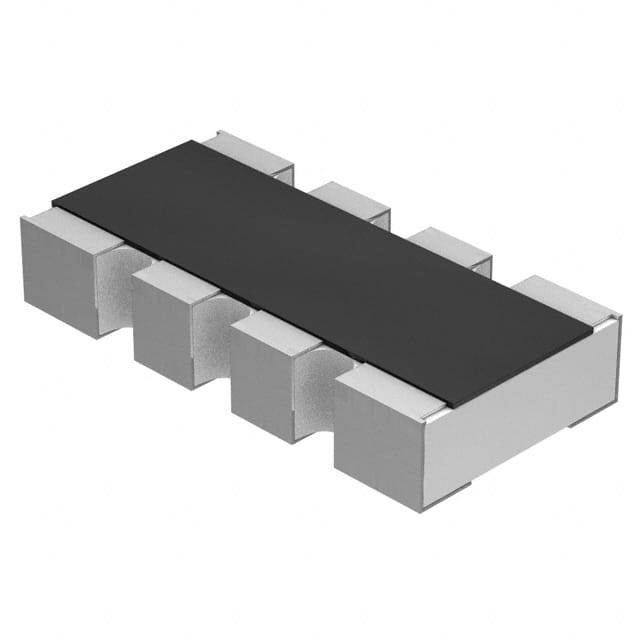

This Samsung Electro-Mechanics RP104PJ3R0CS is a resistor array component designed for electronic circuits. It features four individual resistors, each with a nominal resistance of 3 Ohms and a tolerance of ±5%. The array is housed in an 0804 package, suitable for surface mount applications.
The component operates within a temperature range of -55°C to 155°C and has a power rating of 62.5mW per element. Its dimensions are 2.00mm in length and 1.00mm in width, with a height of 0.45mm. The circuit type is isolated, and it has 8 pins in total.
Compliance information indicates RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is 1, signifying unlimited usability under standard conditions. This part is suitable for various electronic applications requiring integrated resistor networks.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RP104PJ3R0CS resistor array has a resistance value of 3 Ohms.
The tolerance for the RP104PJ3R0CS resistor array is ±5%.
The RP104PJ3R0CS resistor array contains 4 resistors.
The RP104PJ3R0CS resistor array is supplied in an 0804 package.
The RP104PJ3R0CS resistor array can operate in temperatures ranging from -55°C to 155°C.
