| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
175 pcs
|
175 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

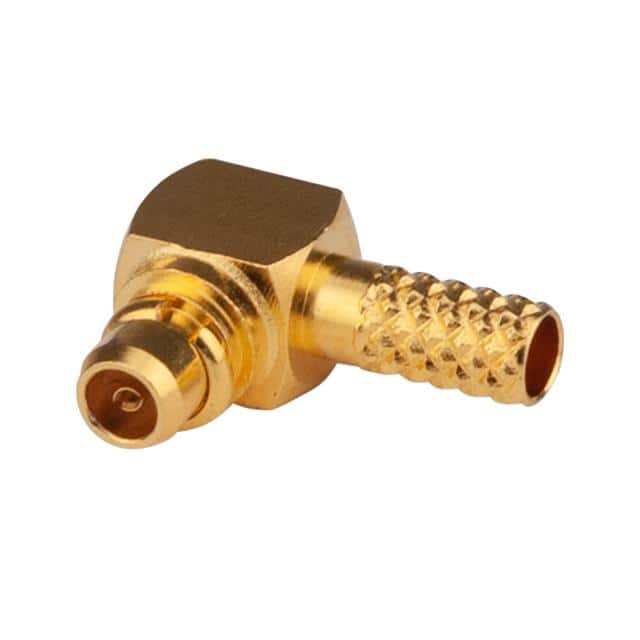

The RP-9010-1B is an RP-MMCX male pin plug connector manufactured by RF Industries. It is designed for free-hanging, in-line mounting with a right angle orientation, making it suitable for space-constrained RF applications. The connector uses a snap-on fastening mechanism for quick and secure mating.
This connector offers 50 Ohm characteristic impedance and supports frequencies up to 6 GHz. The center contact is made of beryllium copper, and both the contact and shield are terminated using a crimp method. The housing is gold colored, and the connector includes an EMI ring feature for enhanced electromagnetic interference protection.
Typical applications include RF cable assemblies, wireless infrastructure, and test equipment where a compact, right-angle RP-MMCX interface is required. The connector is rated RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $8.40 | $8.40 |
| 50+ | $8.00 | $8.00 |
| 100+ | $7.70 | $7.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a plug, male pin connector with an RP-MMCX style.
The impedance is 50 Ohms.
The maximum frequency rating is 6 GHz.
It is free hanging (in-line) with a right angle orientation, and uses crimp termination for both contact and shield.
It uses a snap-on fastening type.
The center contact material is beryllium copper.
The housing color is gold.
